Guided Lab: Connecting to a Kubernetes Engine Cluster

Jon-Bonso

Description

Connecting to a Google Kubernetes Engine (GKE) cluster is an essential step for viewing and managing Kubernetes resources. Establishing a connection allows you to interact with the cluster’s control plane, verify node availability, and prepare the environment for deploying and managing containerized workloads.

Google Cloud provides built-in tools, such as Cloud Shell and cluster access options in the Google Cloud Console, to make connecting to a GKE cluster straightforward and secure. These tools ensure that your environment is properly authenticated and configured to communicate with the cluster.

In this guided lab, you’ll learn how to connect to an existing GKE cluster using the Google Cloud Console and verify that the connection is successful.

Prerequisites

This lab assumes you have already created a Google Kubernetes Engine (GKE) cluster and are familiar with its basic components.

If you find any gaps in your knowledge, consider taking the following labs:

  • Creating a Google Kubernetes Engine (GKE) cluster

Objectives

In this lab, you will:

  • Create a Compute Engine instance template
  • Review the configuration options included in an instance template
  • Use the instance template to create a VM instance

Subscribe to access GCP PlayCloud Labs

Lab Steps

Navigating to a GKE Cluster

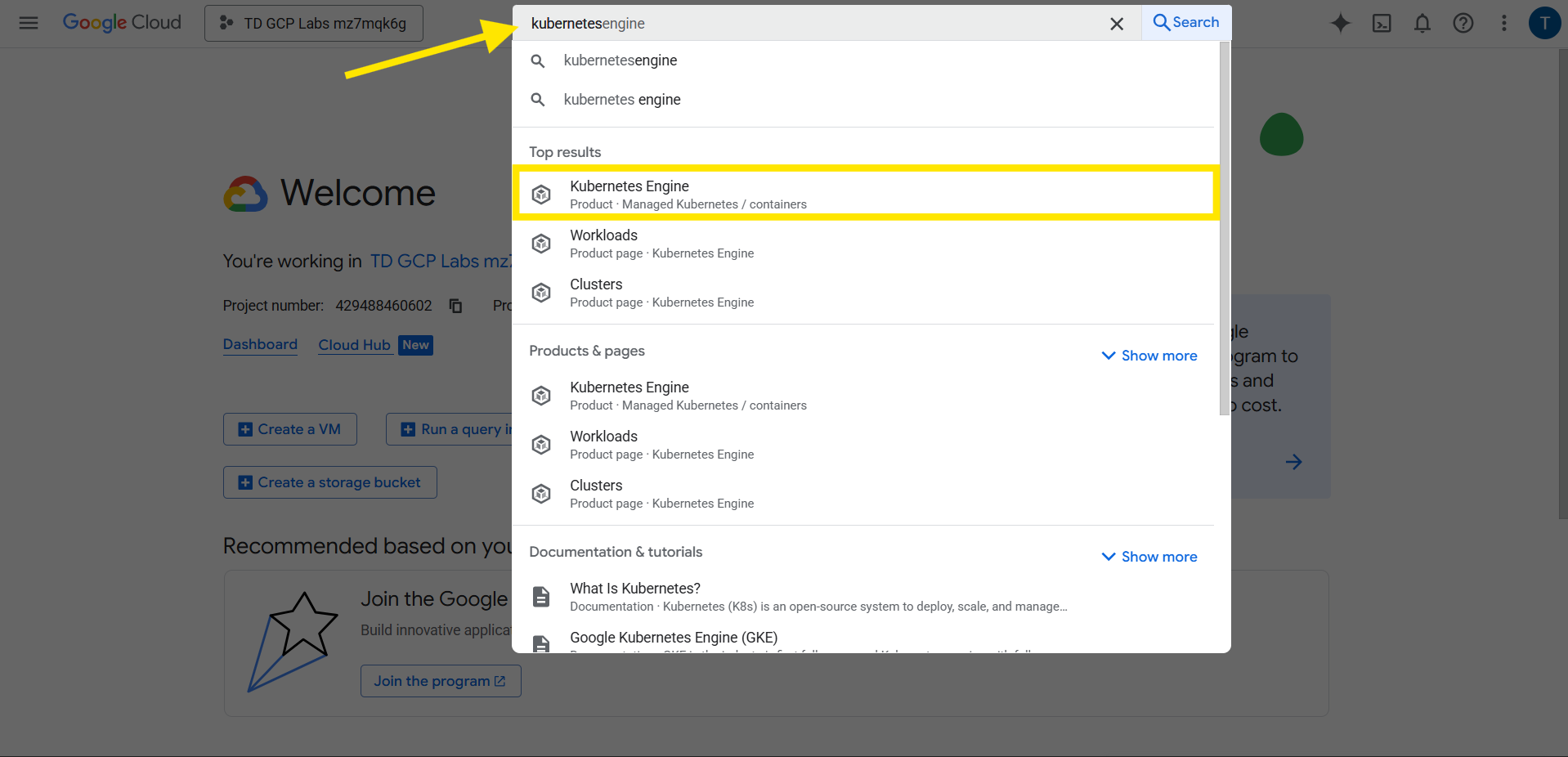

1. In the Google Cloud console, go to the unified search bar at the top.

2. Type “Kubernetes” and select Kubernetes Engine from the results.

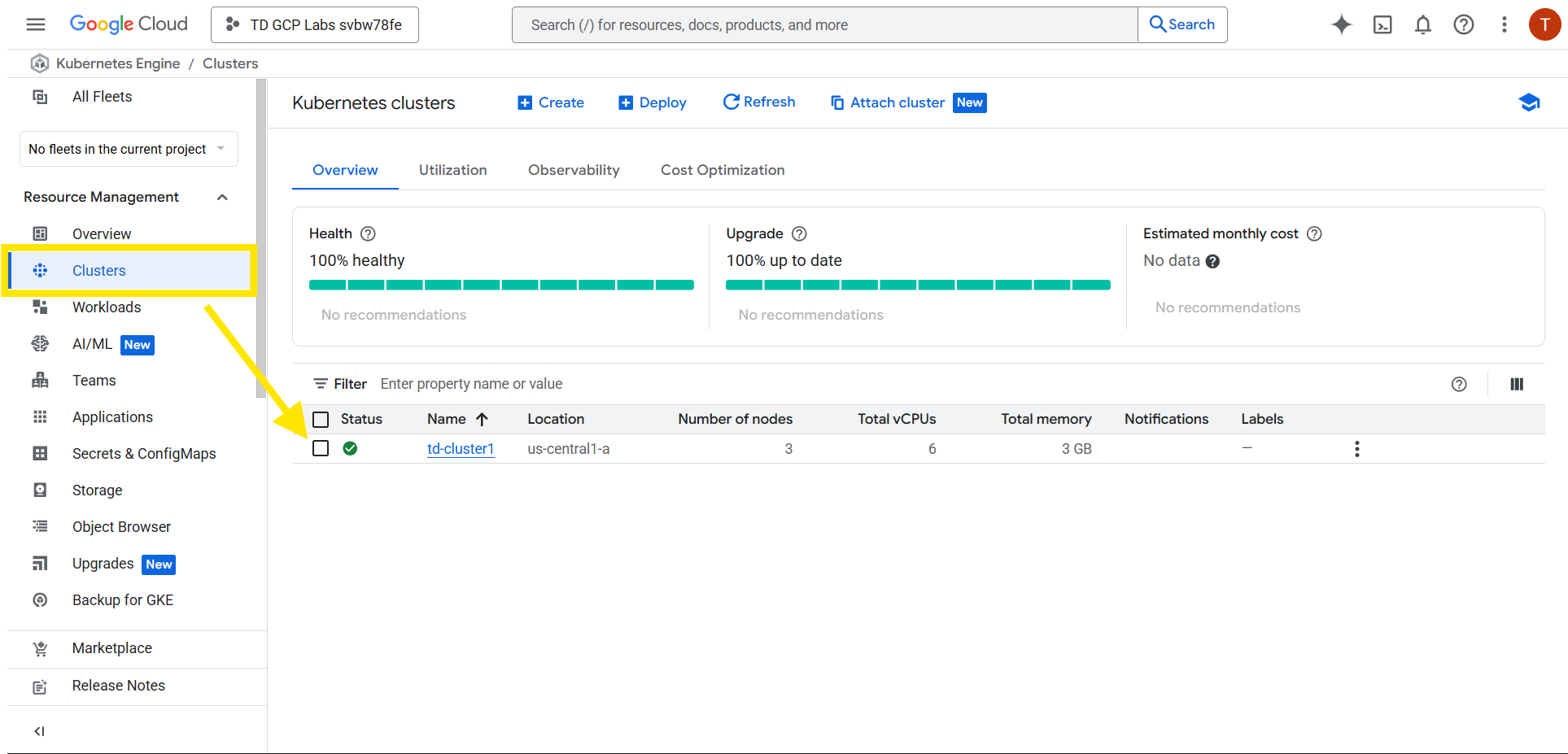

3. Click Clusters to view the list of available GKE clusters. Select the cluster that you want to connect to.

Connecting to the GKE Cluster

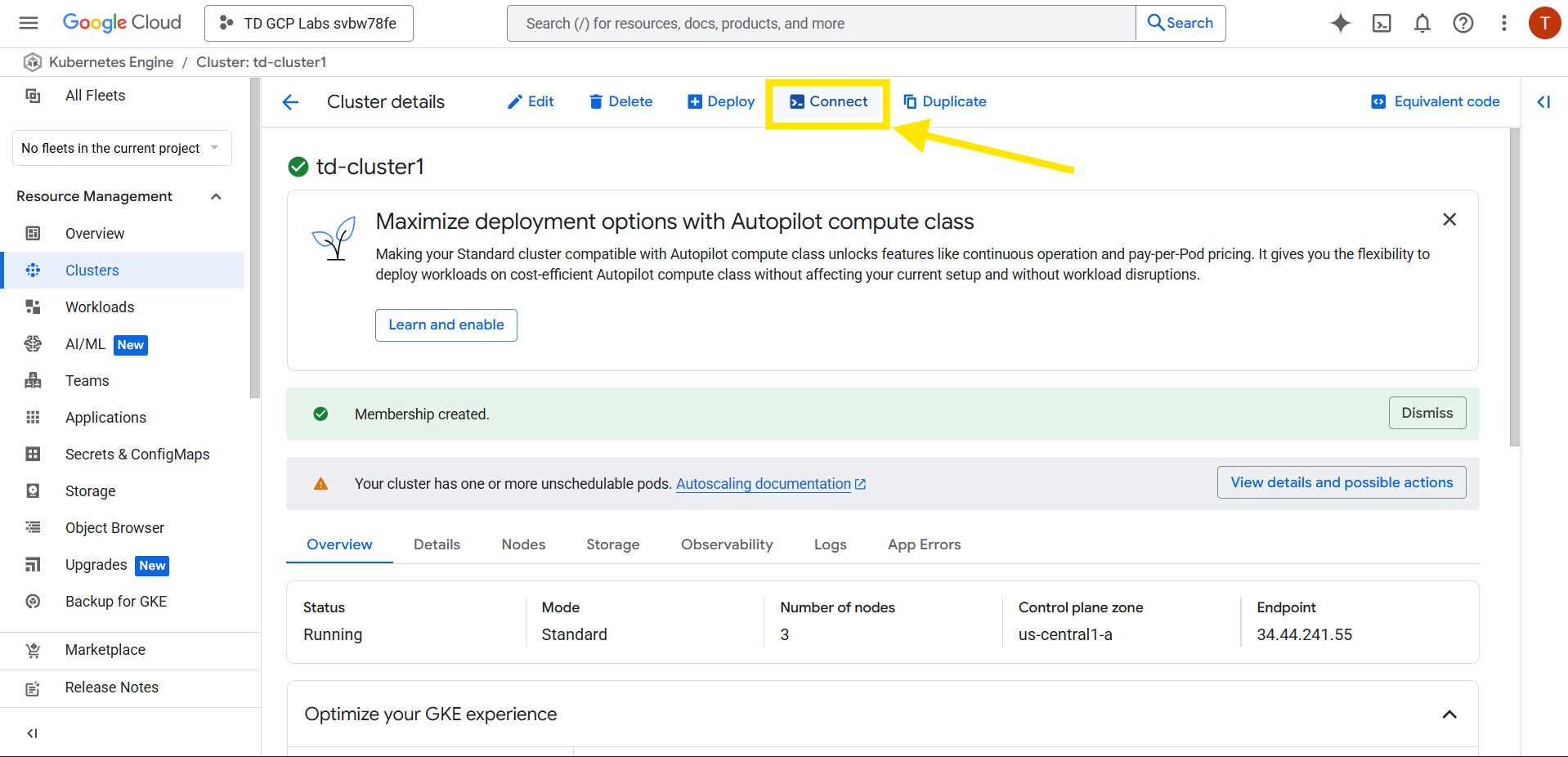

1. On the cluster details page, click Connect at the top of the page.

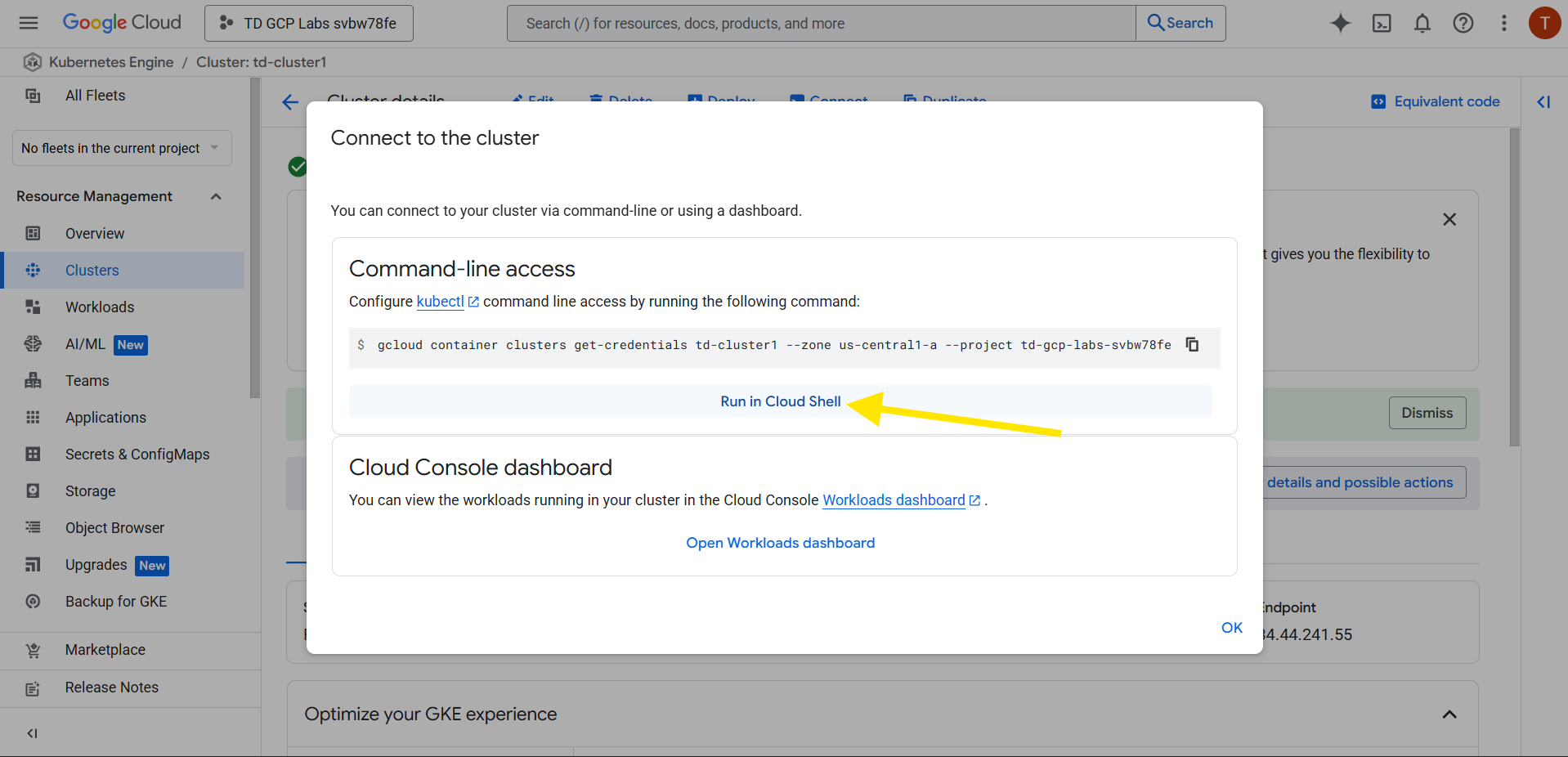

2. In the connection dialog, choose Run in Cloud Shell

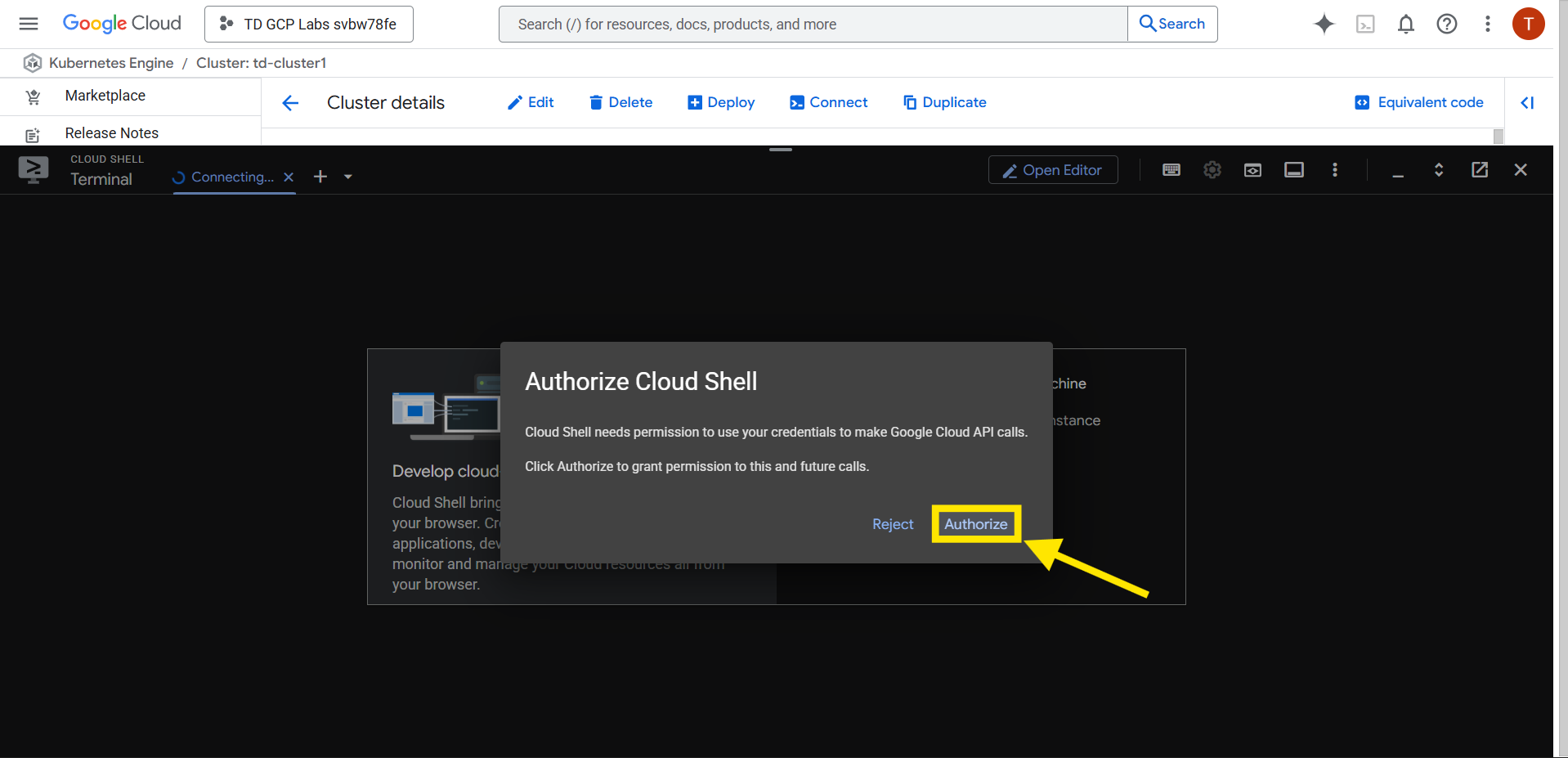

3. You will be prompted to authorize Cloud Shell. Click Authorize, then enter the username and password of the account you are currently using.

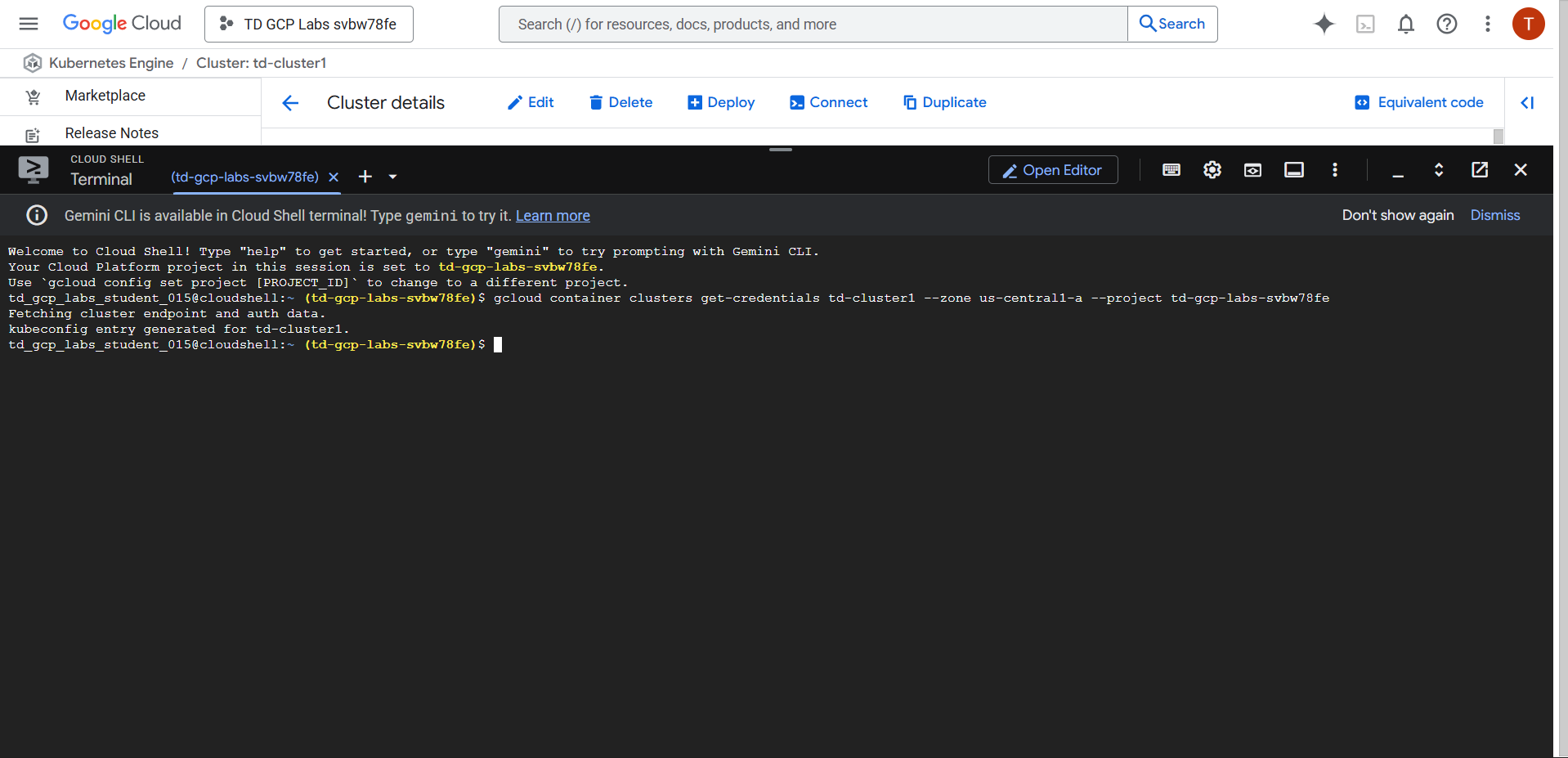

4. Run the command to configure your local environment with the cluster’s credentials, allowing kubectl to access and manage the GKE cluster.

Verifying the Cluster Connection

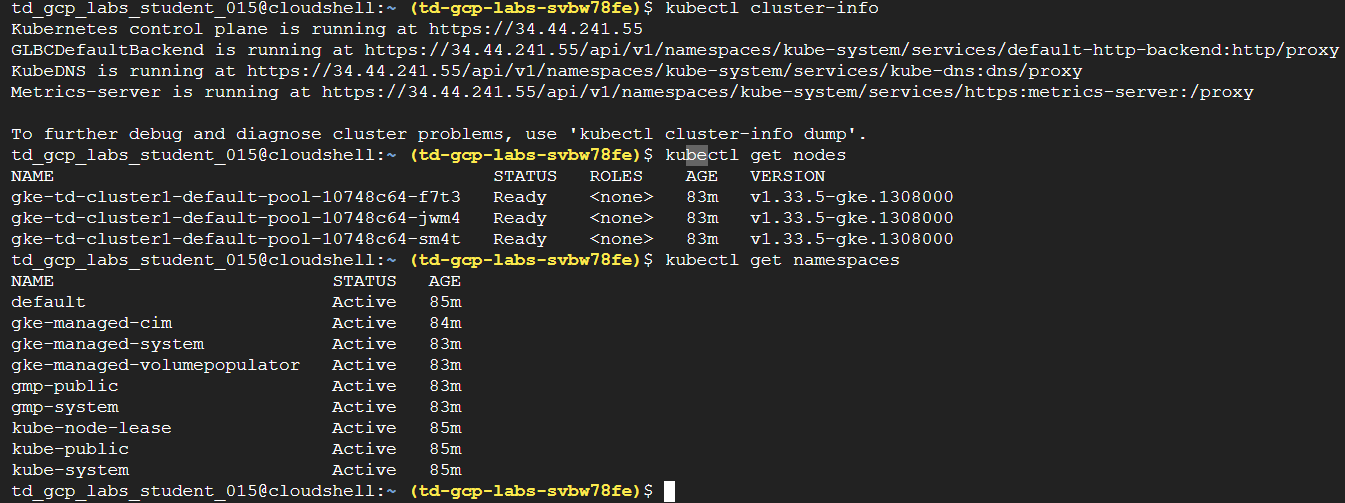

In Cloud Shell, confirm that the kubectl configuration command completes without errors by running the following commands:

  • kubectl cluster-info
  • kubectl get nodes
  • kubectl get namespaces

Review the output of each command to confirm that the cluster is accessible and responding correctly.

That’s it! You’ve successfully connected to your Google Kubernetes Engine cluster and verified access to its nodes and resources. This guided lab helps you become familiar with establishing secure access to a GKE cluster and reviewing its configuration. In future guided labs, we’ll build on this by deploying containerized applications, managing workloads, and exploring scaling and networking features in GKE.
