Guided Lab: Creating a Cloud NAT Gateway

Jon-Bonso

Description

Cloud NAT (Network Address Translation) is a managed Google Cloud service that allows virtual machine (VM) instances without external IP addresses to securely access the internet. It enables outbound connections for updates, patching, and external API access while preventing inbound connections from the internet, helping improve security and reduce exposure.

Cloud NAT works with Cloud Router to dynamically manage network address translation for resources in a Virtual Private Cloud (VPC) network. It scales automatically based on traffic and does not require manual configuration of NAT rules on individual instances, making it suitable for both small and large workloads.

In this guided lab, you’ll learn how to configure a Cloud Router, create a Cloud NAT gateway, and enable internet access for private Compute Engine instances while keeping them isolated from direct inbound traffic.

Objectives

In this lab, you will:

  • Create a Cloud Router to support Cloud NAT
  • Configure a Cloud NAT gateway for a VPC network
  • Review and verify the Cloud NAT configuration details

Subscribe to access GCP PlayCloud Labs

Lab Steps

Navigating to Google Cloud NAT

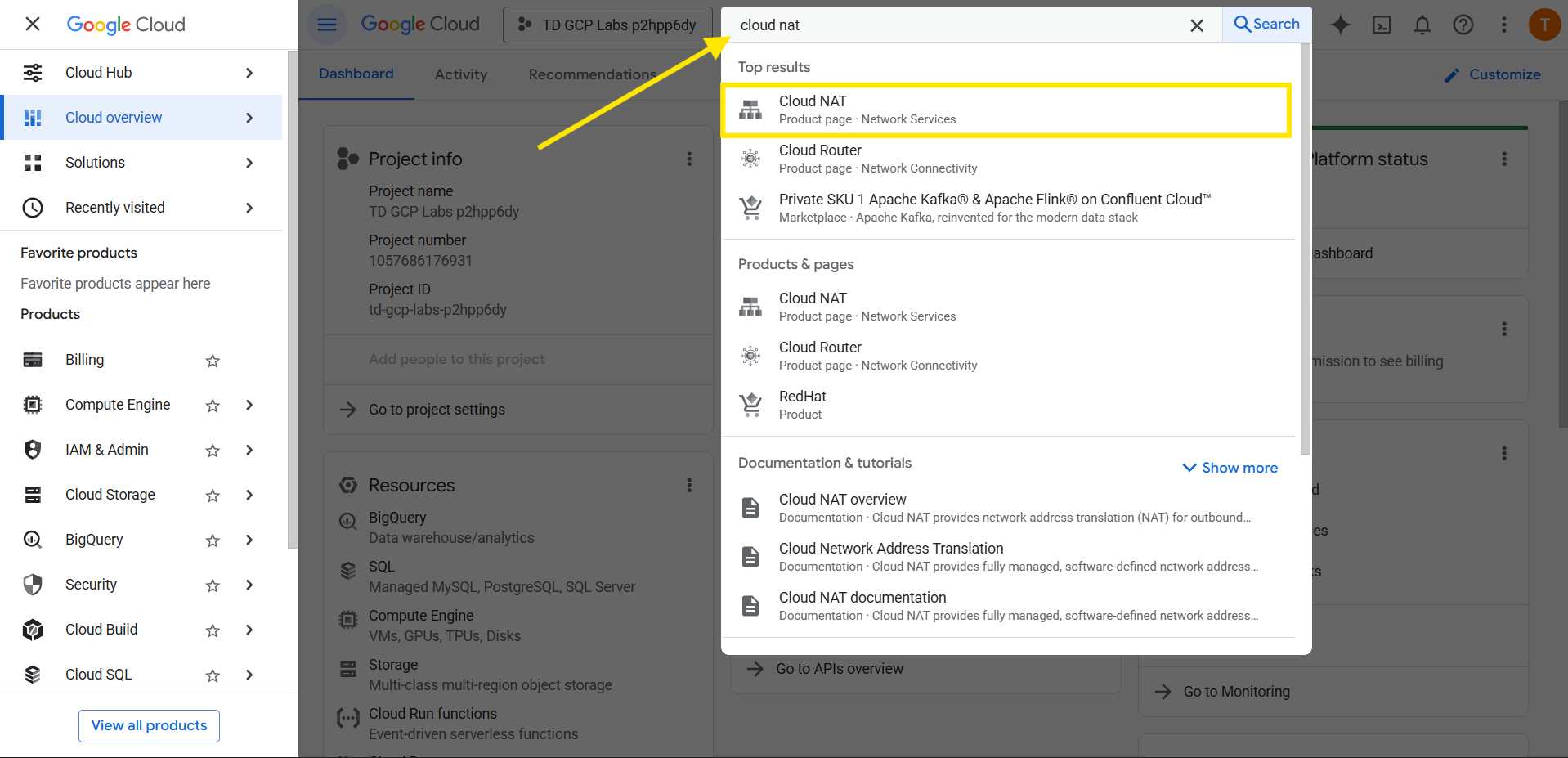

1. In the Google Cloud console, go to the unified search bar at the top.

2. Type “Cloud nat” and select “Cloud NAT” from the results.

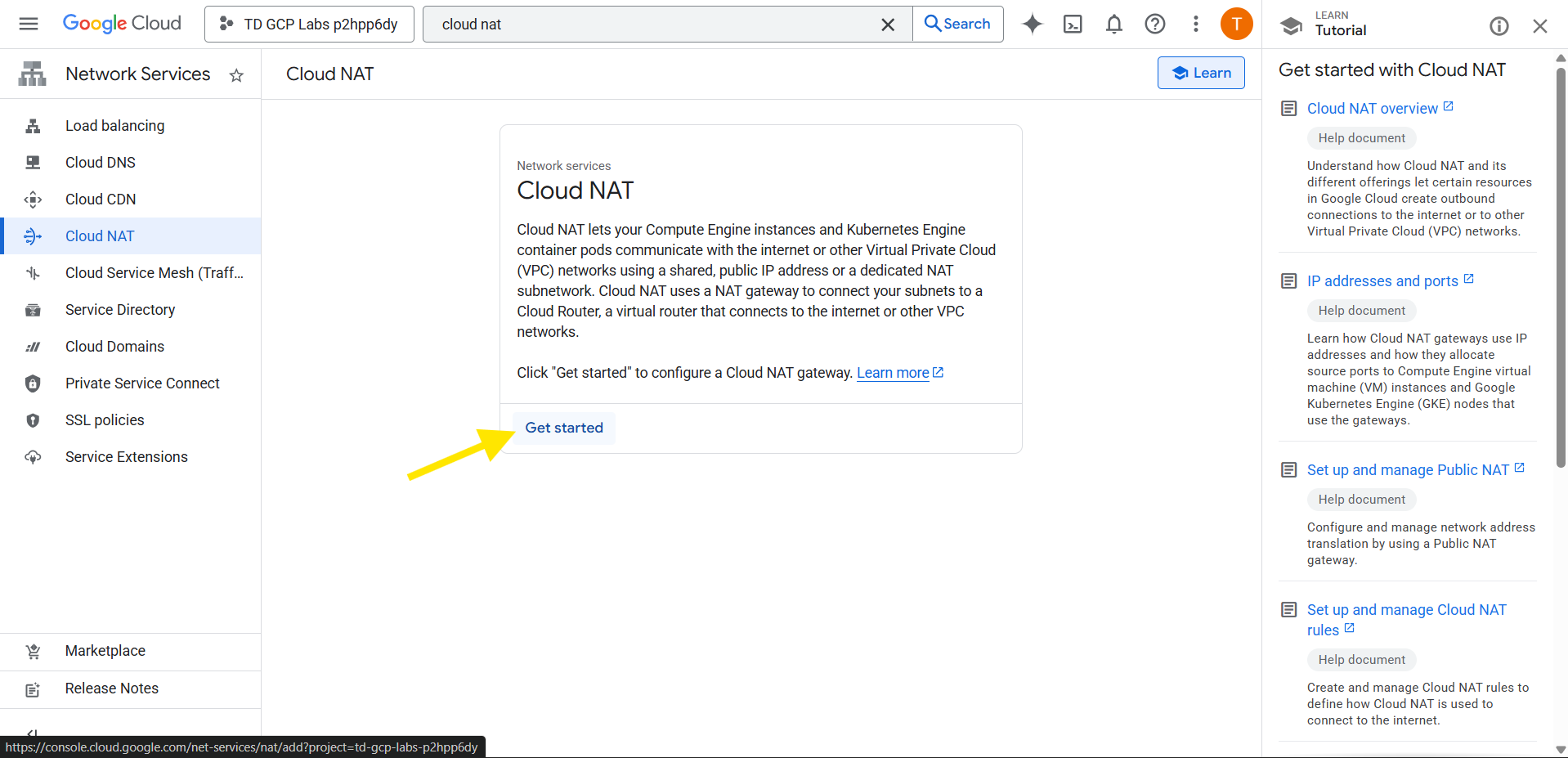

3. The Cloud NAT page will show up. Click “Get started” in the middle of the page to start configuring your own NAT gateway

Creating a NAT gateway

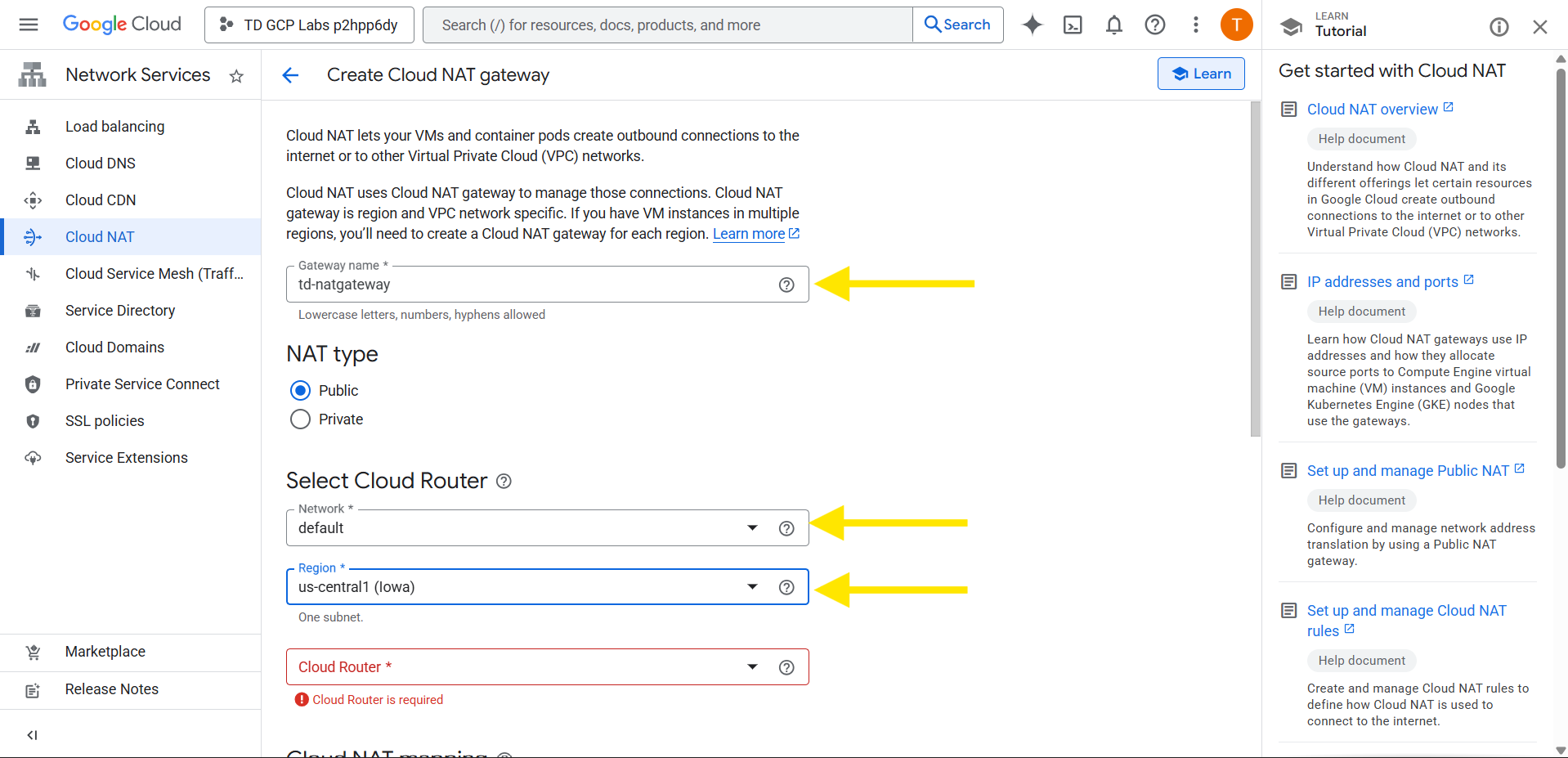

On the setup page, configure the following:

  • Gateway name: <your preferred NAT gateway name>
  • NAT type: Public
  • Select Cloud Router
    • Network: default
    • Region: us-central1 (Iowa)

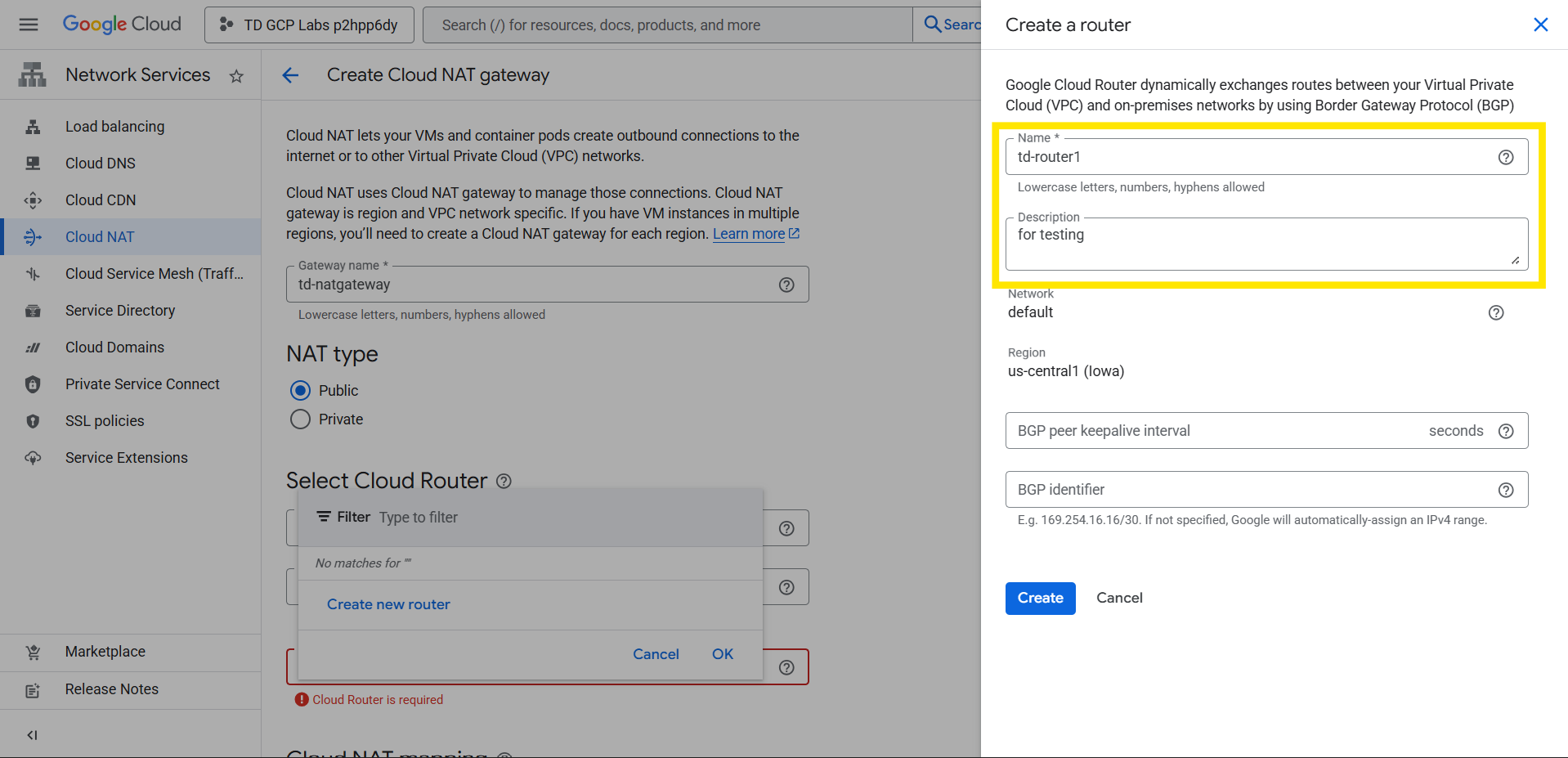

    • Cloud Router: Select “create new router”. A right-hand sidebar will appear. Configure your cloud router there by providing your preferred router name and description

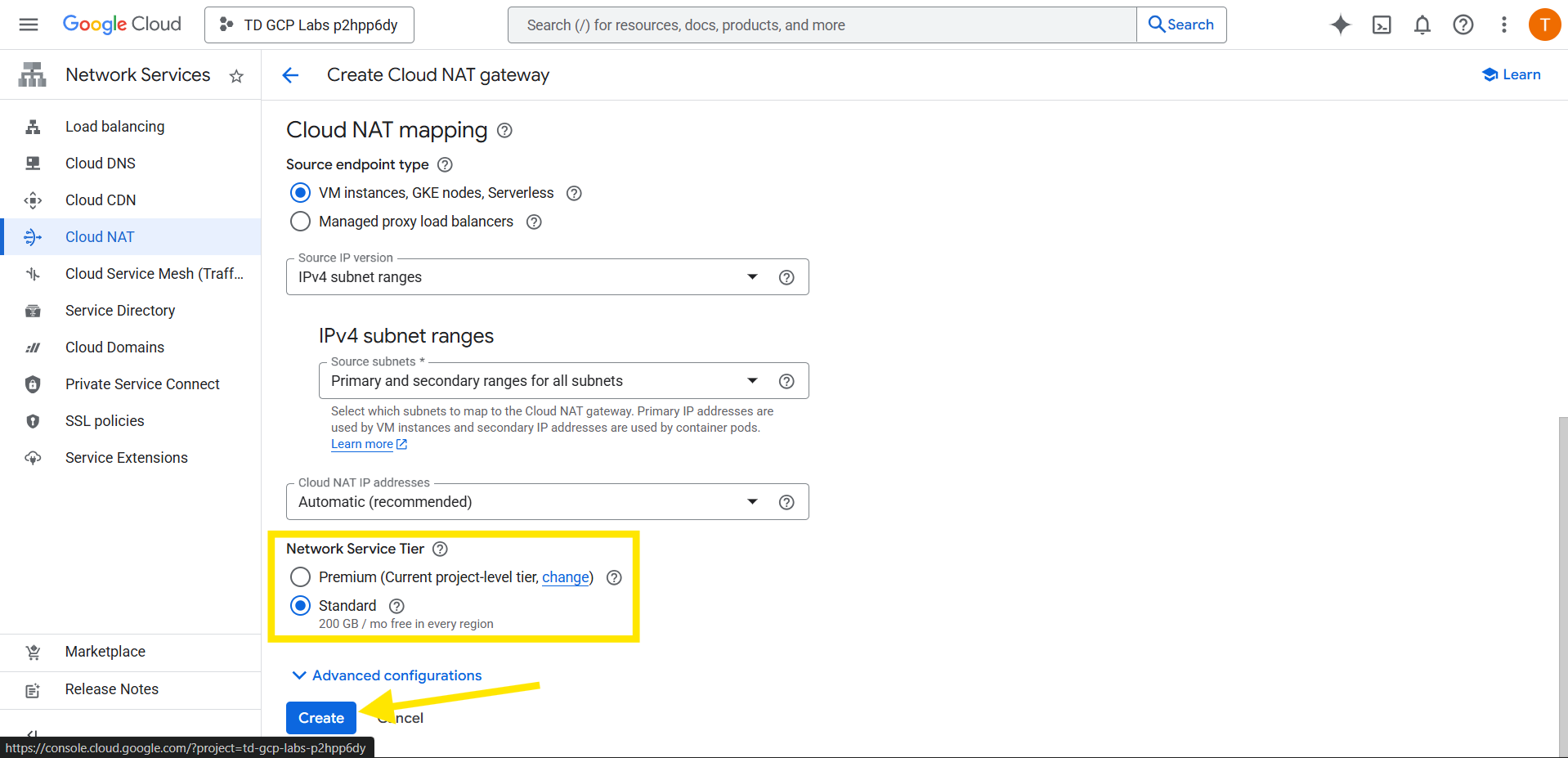

  • Network Service Tier: Standard
  • Once done, click Create

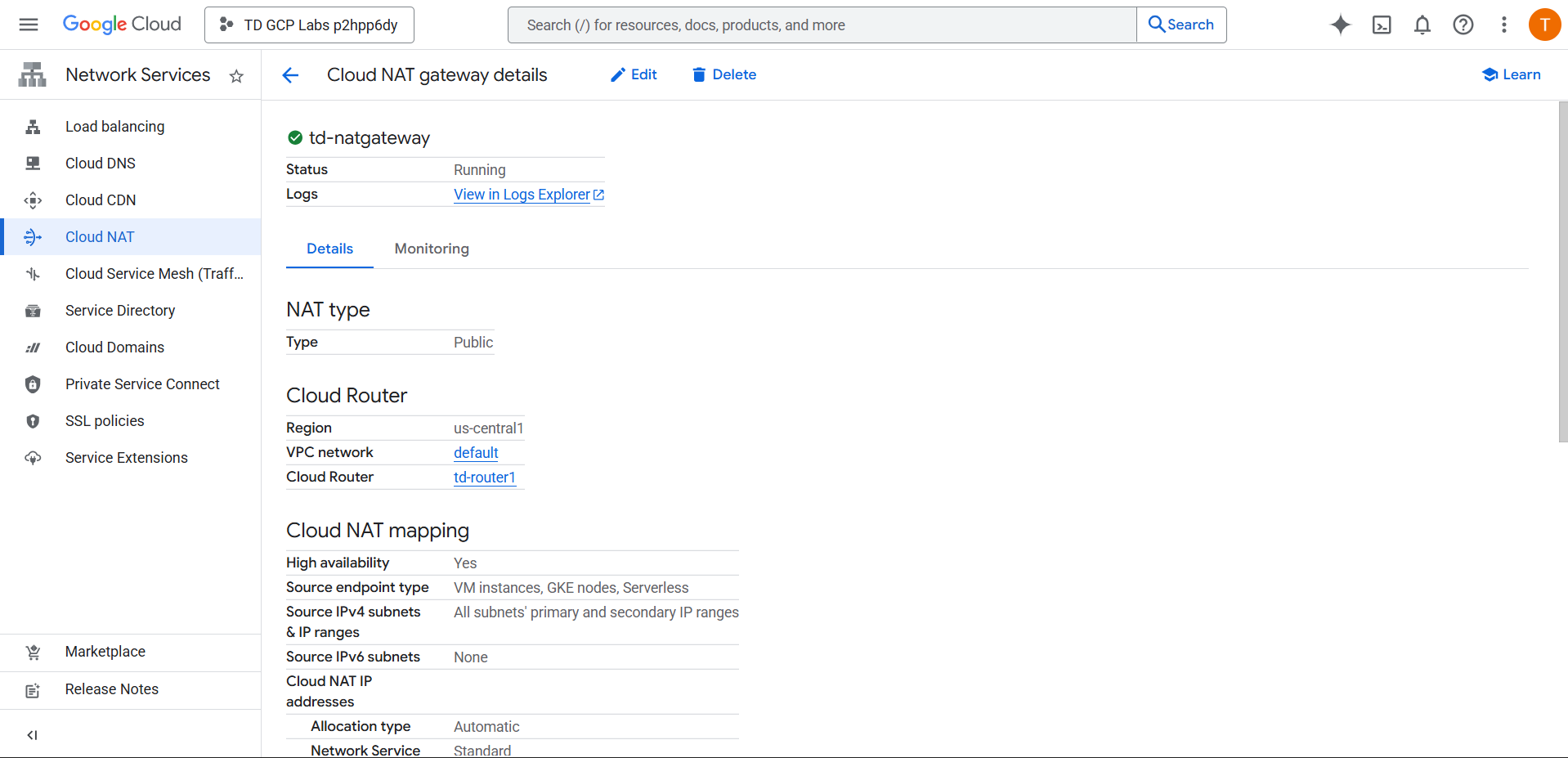

Verifying the Cloud NAT gateway configuration

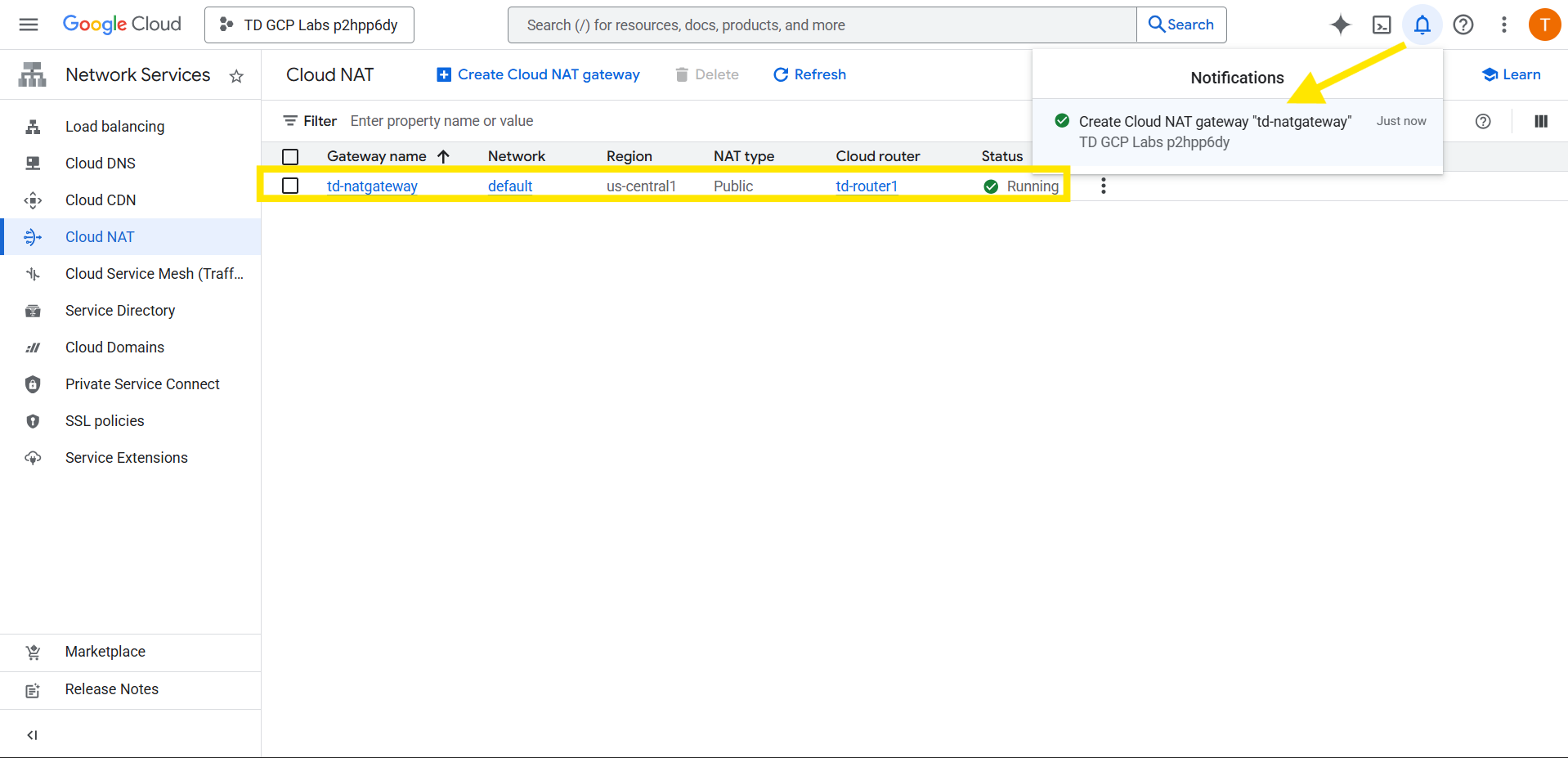

Wait until the Cloud NAT gateway is created. You can see it in the Cloud NAT service page or in the notifications at the upper right corner to see if it was created successfully.

Congratulations! You’ve successfully created a Cloud Router and a Cloud NAT gateway, and explored its configuration in the Google Cloud Console. This simple guided lab gives you hands-on experience with setting up a NAT gateway and understanding its role in enabling outbound internet access for private resources. In future guided labs, we’ll go further by exploring additional NAT configurations and testing how it works with virtual machines to reinforce your understanding of its functionality and connectivity.
