Guided Lab: Creating a Custom Virtual Private Cloud (VPC)

Jon-Bonso

Description

A VPC can automatically build your network topology by assigning subnet ranges and policies, or you can customize them yourself. CIDR ranges can also be expanded without causing downtime.

In this lab, you will create a custom VPC in Google Cloud with subnets, firewall rules, and a VM instance to verify connectivity. By the end, you’ll have a working network environment suitable for hosting applications.

Prerequisites

To ensure the successful completion of this lab, you must have prior experience in creating VM instances and be familiar with their essential components. If you feel that your knowledge in this area is insufficient, we highly recommend taking this lab to gain the necessary understanding:

Objectives

In this lab, you will:

  • Create a custom VPC with a defined IP range
  • Add a subnet
  • Configure firewall rules for SSH and ICMP during VPC creation
  • Launch a VM instance in the VPC
  • Verify connectivity

Subscribe to access GCP PlayCloud Labs

Lab Steps

Create the VPC

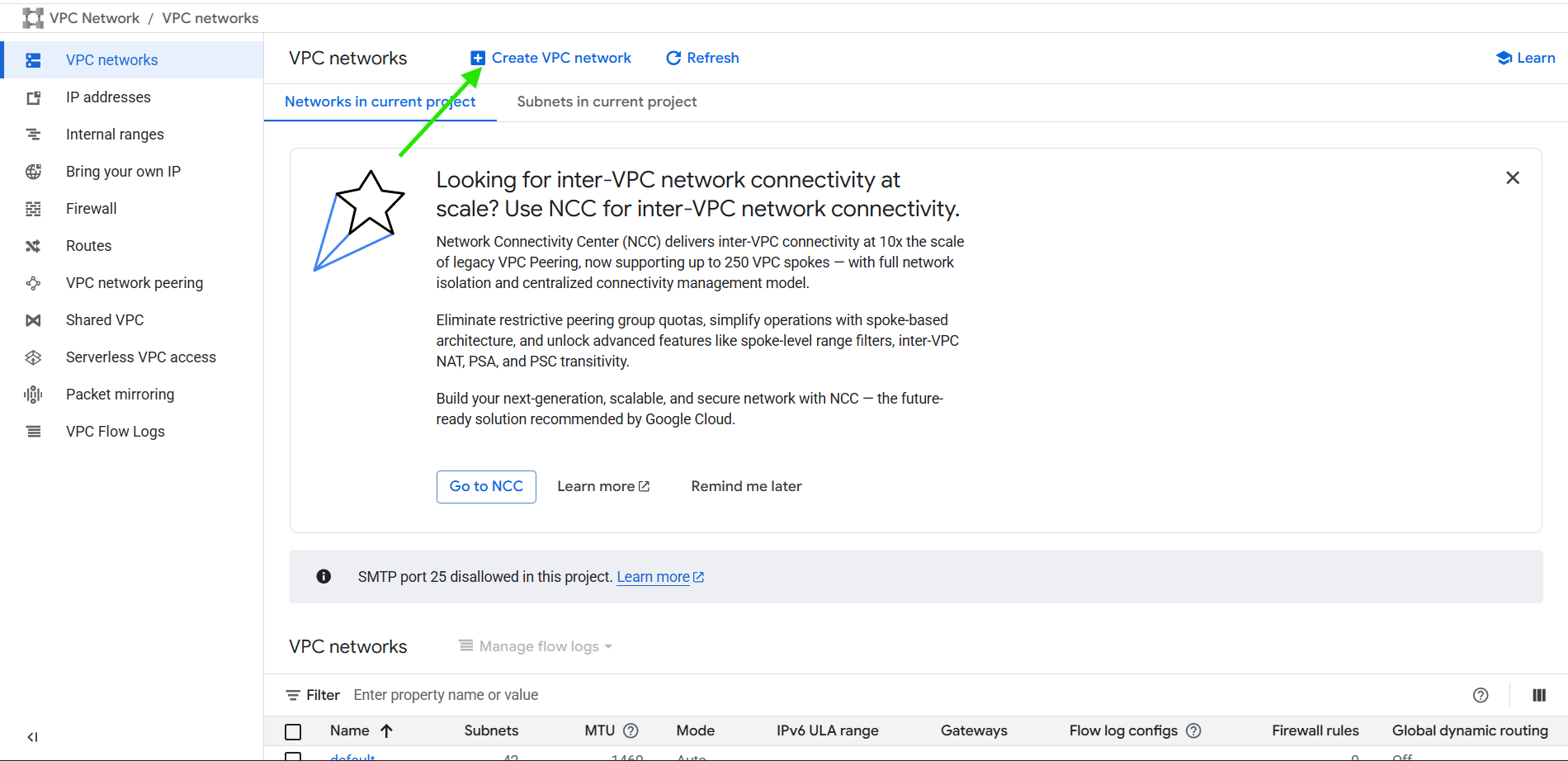

1. In the Google Cloud Console, navigate to VPC network → VPC networks

2. Click Create VPC network

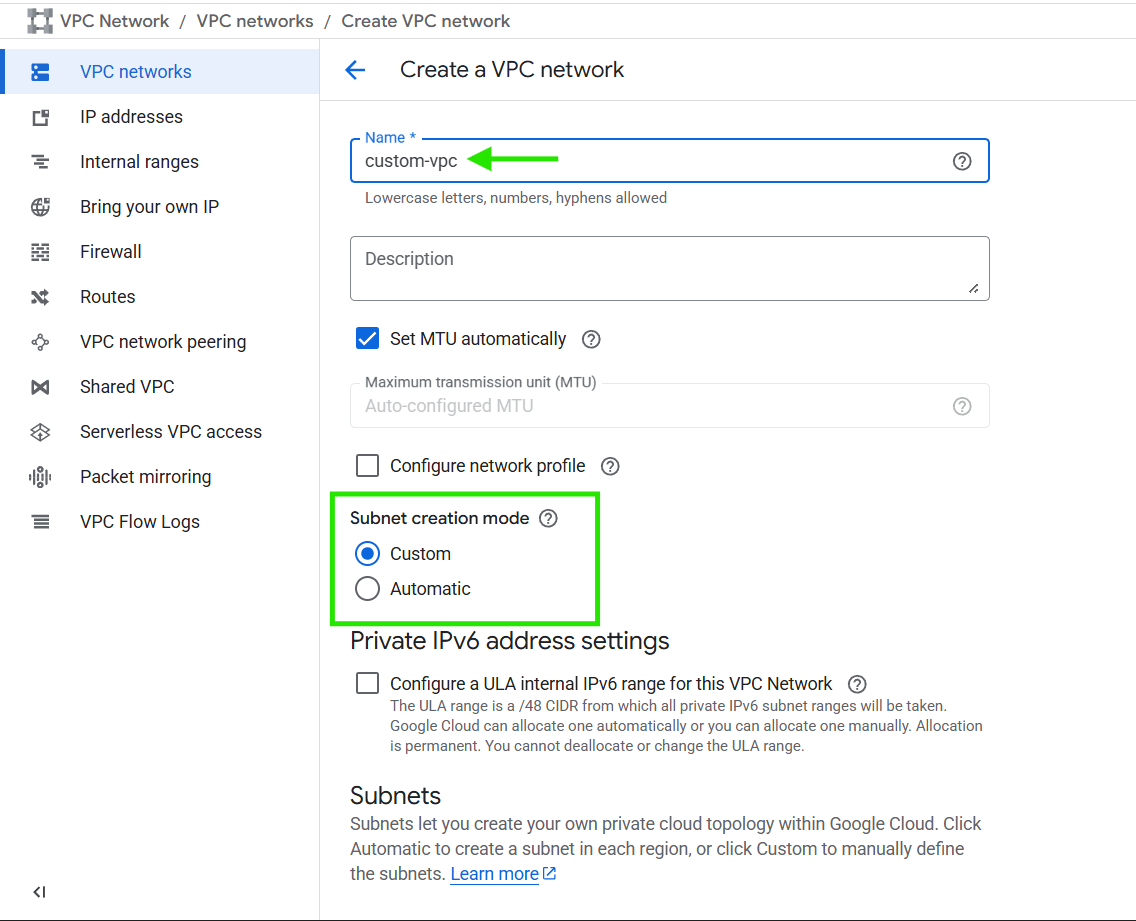

3. Enter:

  • Name: custom-vpc
  • Subnet creation mode: Custom

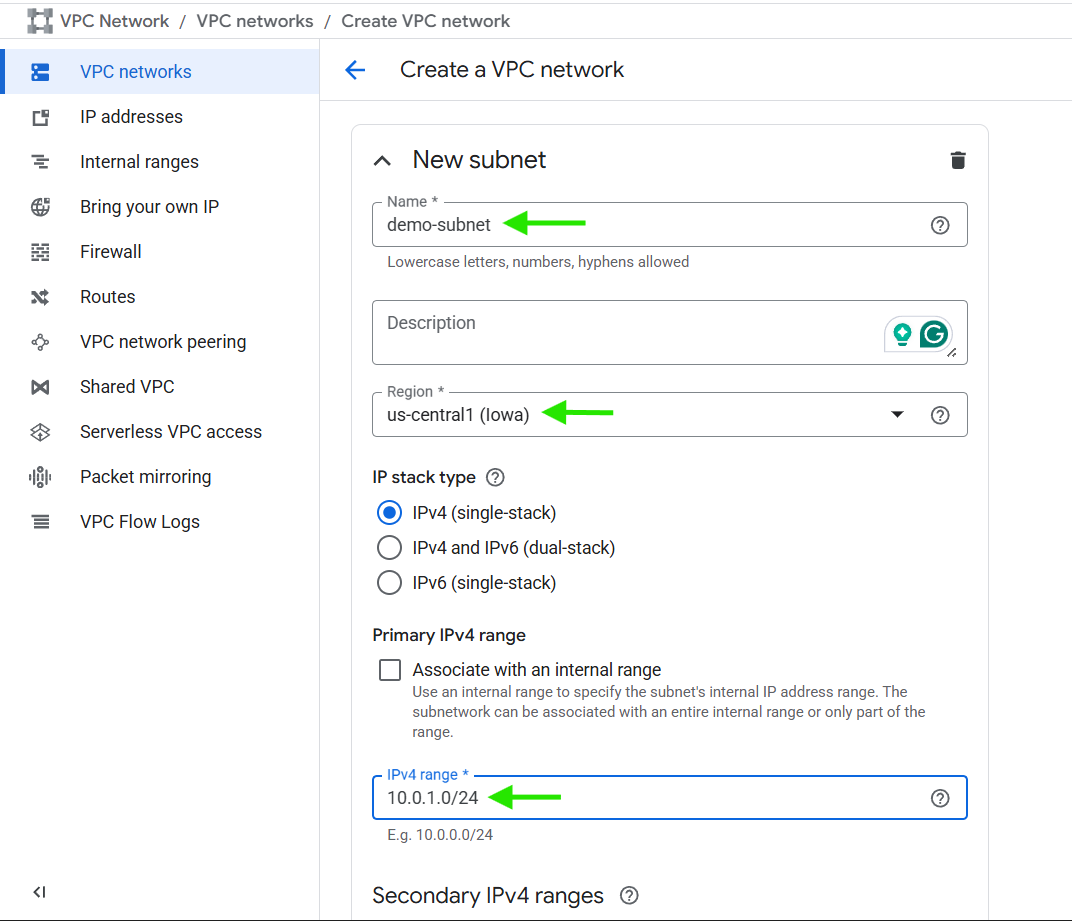

4. Add a subnet:

  • demo-subnet: 10.0.1.0/24 (Region: us-central1)

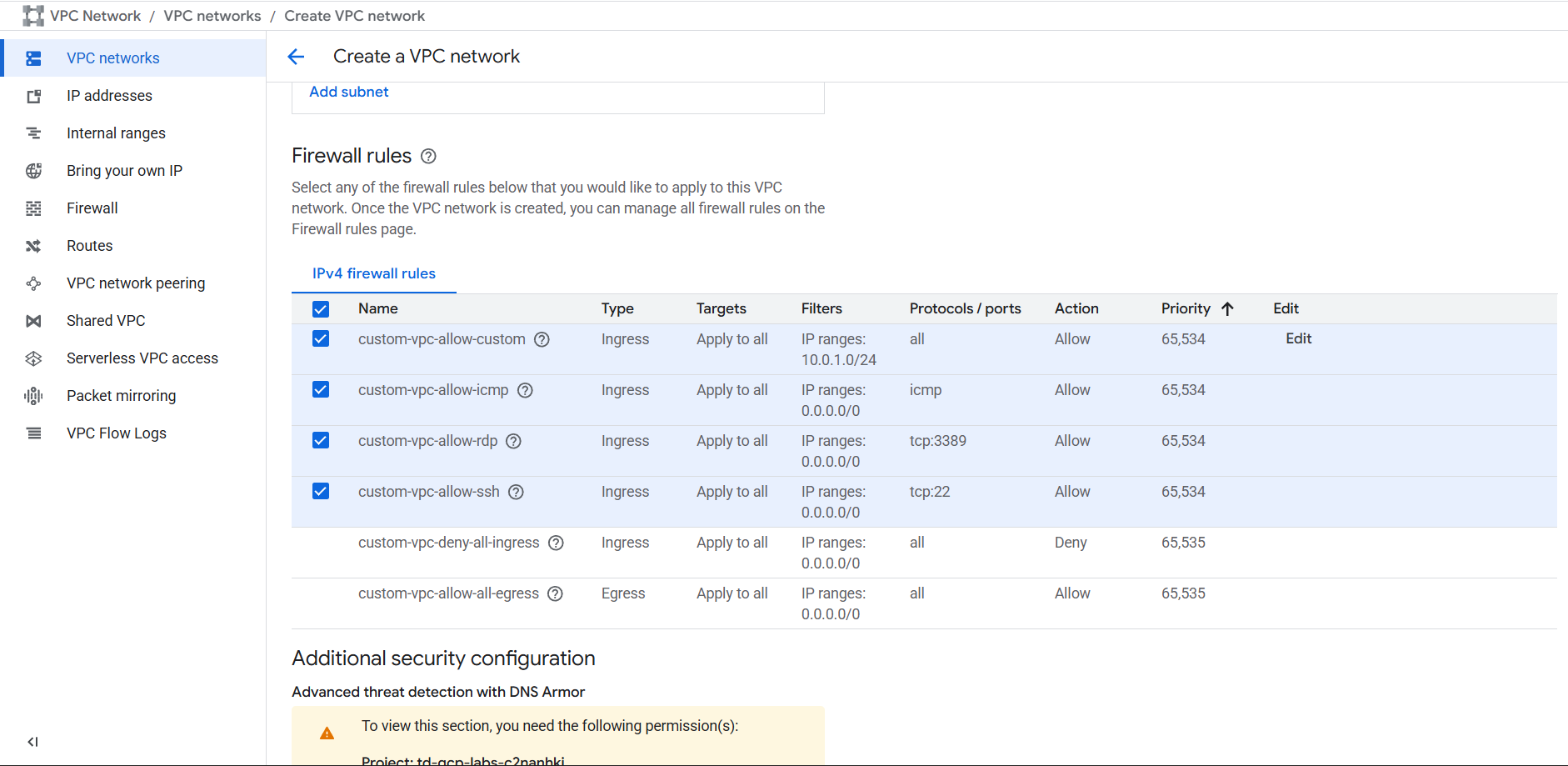

5. Under Firewall rules, select All IPv4 firewall rules. This automatically creates rules to allow SSH, RDP, and ICMP traffic.

6. Leave other configurations at their default values.

7. Click Create

    Launch a VM in the Subnet

    1. Go to Compute Engine → VM instances → Create instance.

    2. Configure the VM:

      • Name: test-vm
      • Machine type: Choose the e2-micro machine type.
      • Region/Zone: us-central1-a

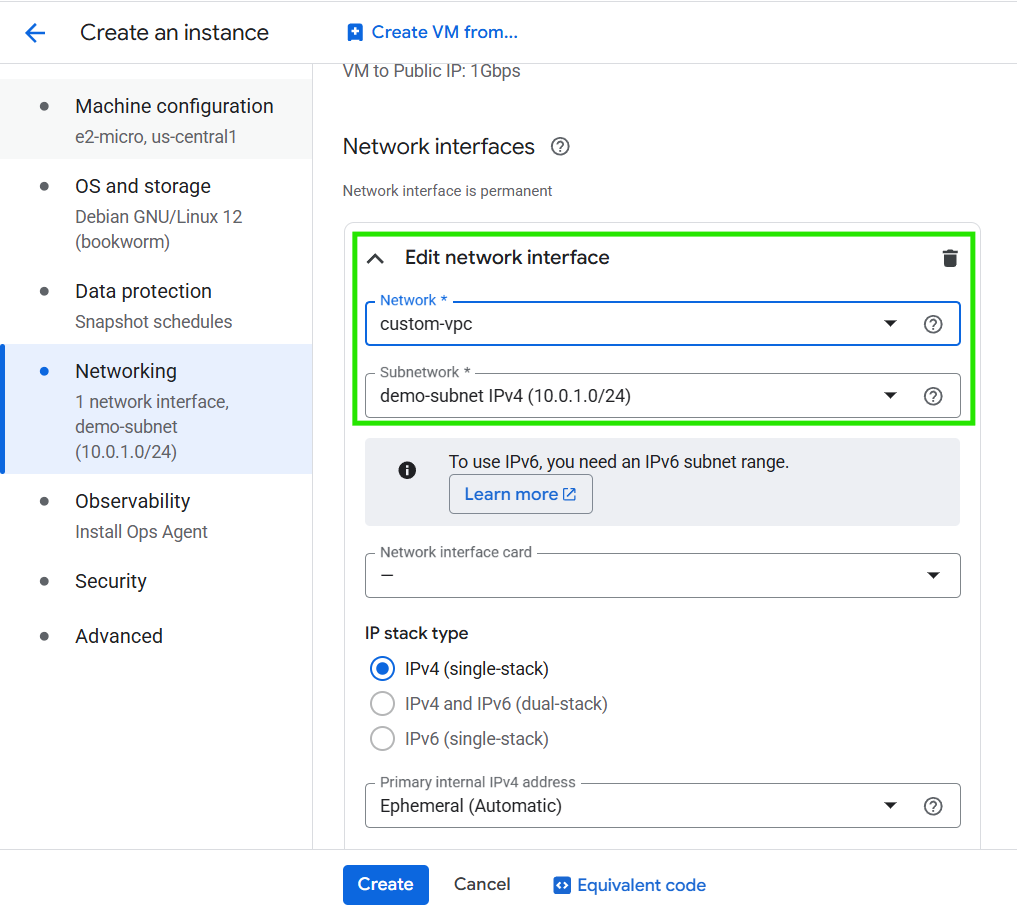

      • Under Networking > Network interfaces
        • Edit the Network interface from default to custom-vpc
      • Subnet: demo-subnet
      • Leave other configurations at their default values.

      3. Click Create

        Test Connectivity

        From the Cloud Console SSH session:

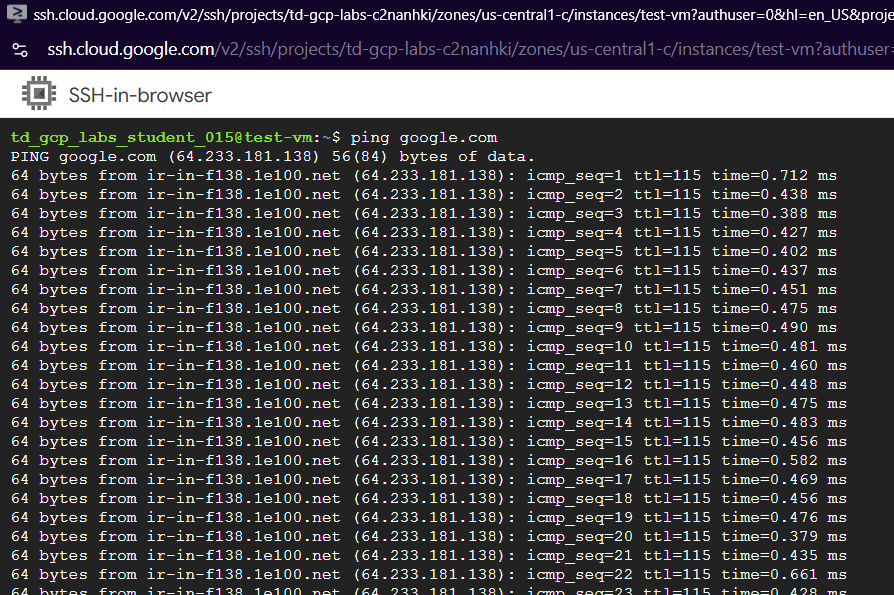

        • Run ping google.com → should succeed.

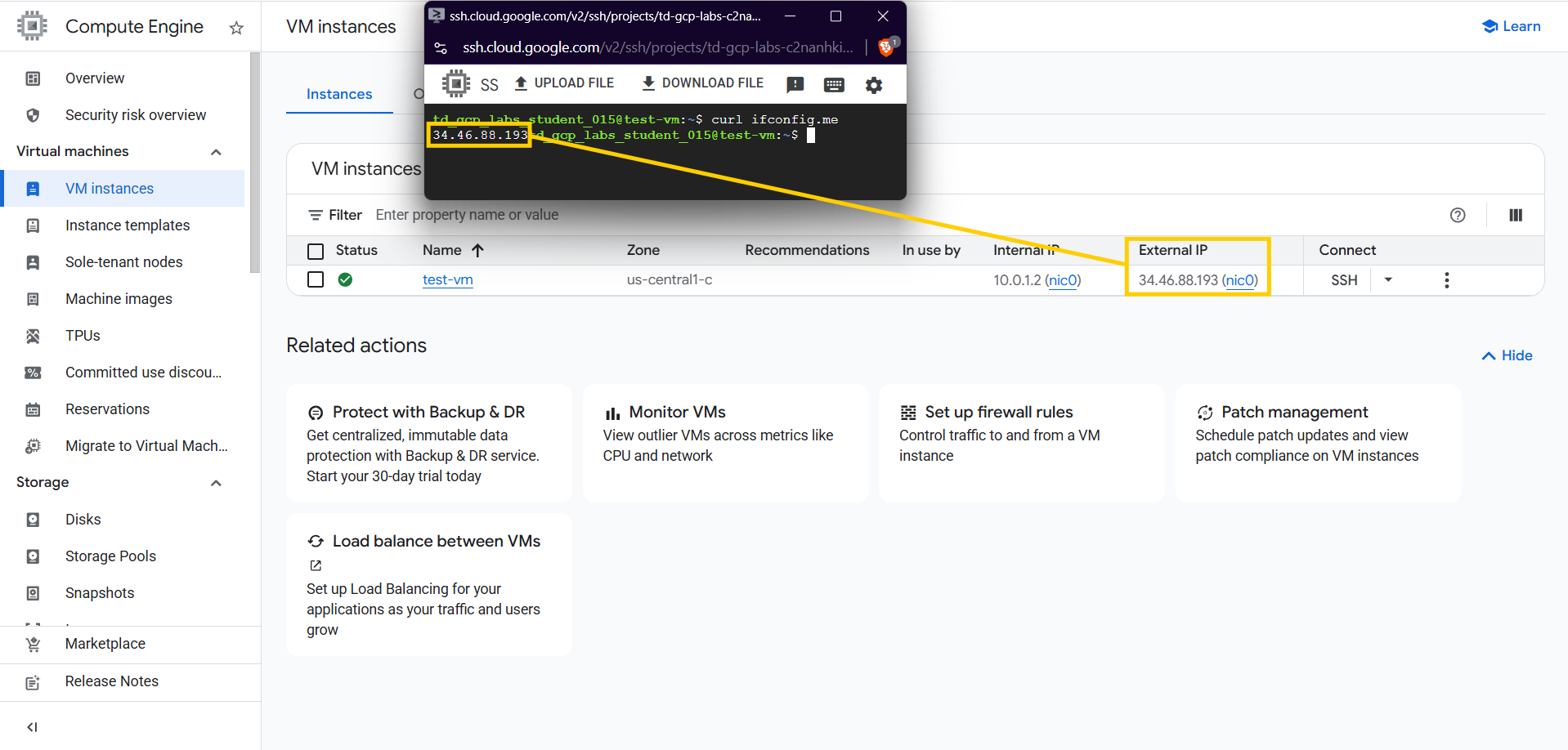

        • Run curl ifconfig.me → should return the VM’s public IP.

        Congratulations! You have successfully created a custom VPC, configured firewall rules during creation, launched a VM, and verified connectivity.
