Guided Lab: Creating a Google Kubernetes Engine (GKE) Cluster

Jon-Bonso

Description

Google Kubernetes Engine (GKE) is a managed container orchestration service that allows you to deploy, manage, and scale containerized applications using Kubernetes on Google Cloud. Before creating a Kubernetes cluster, the Google Kubernetes Engine API must be enabled for your project, as it allows Google Cloud to provision and manage Kubernetes resources on your behalf.

Creating a GKE cluster sets up the control plane, worker nodes, and networking required to run containerized workloads. GKE handles much of the underlying infrastructure management, allowing you to focus on deploying and operating applications.

In this guided lab, you’ll learn how to create a basic Google Kubernetes Engine (GKE) cluster using the Google Cloud Console, including configuring core cluster settings and verifying that the cluster is successfully created.

Objectives

In this lab, you will:

  • Enable the Google Kubernetes Engine API (if still not enabled)
  • Create a Google Kubernetes Engine cluster
  • Review and verify the cluster configuration and status

Subscribe to access GCP PlayCloud Labs

Lab Steps

Enabling the Google Kubernetes Engine API

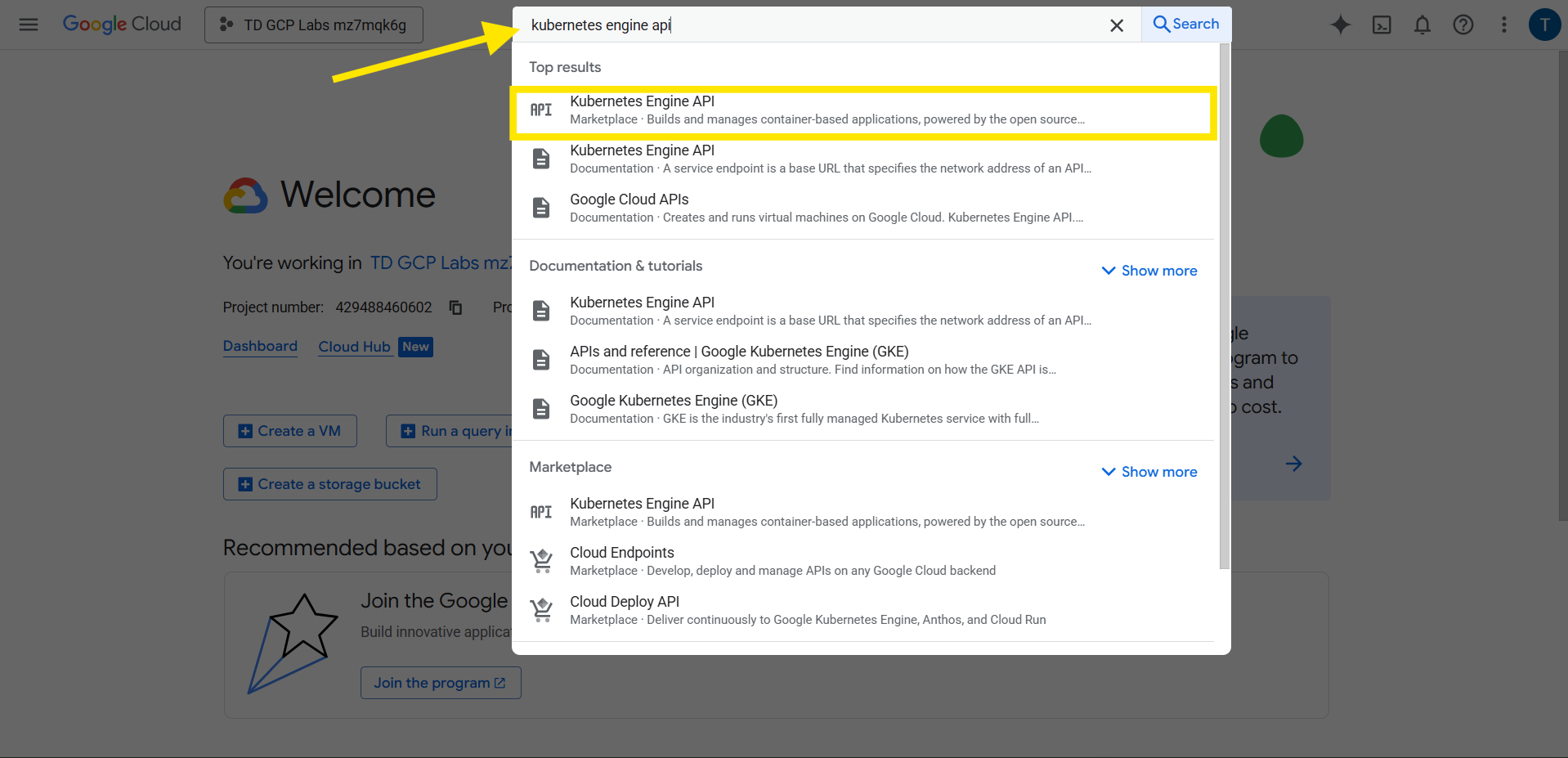

1. In the Google Cloud console, go to the unified search bar at the top.

2. Type “Kubernetes Engine API” and select Kubernetes Engine API from the results.

    3. If the API is not yet enabled, click Enable and wait for the process to complete.

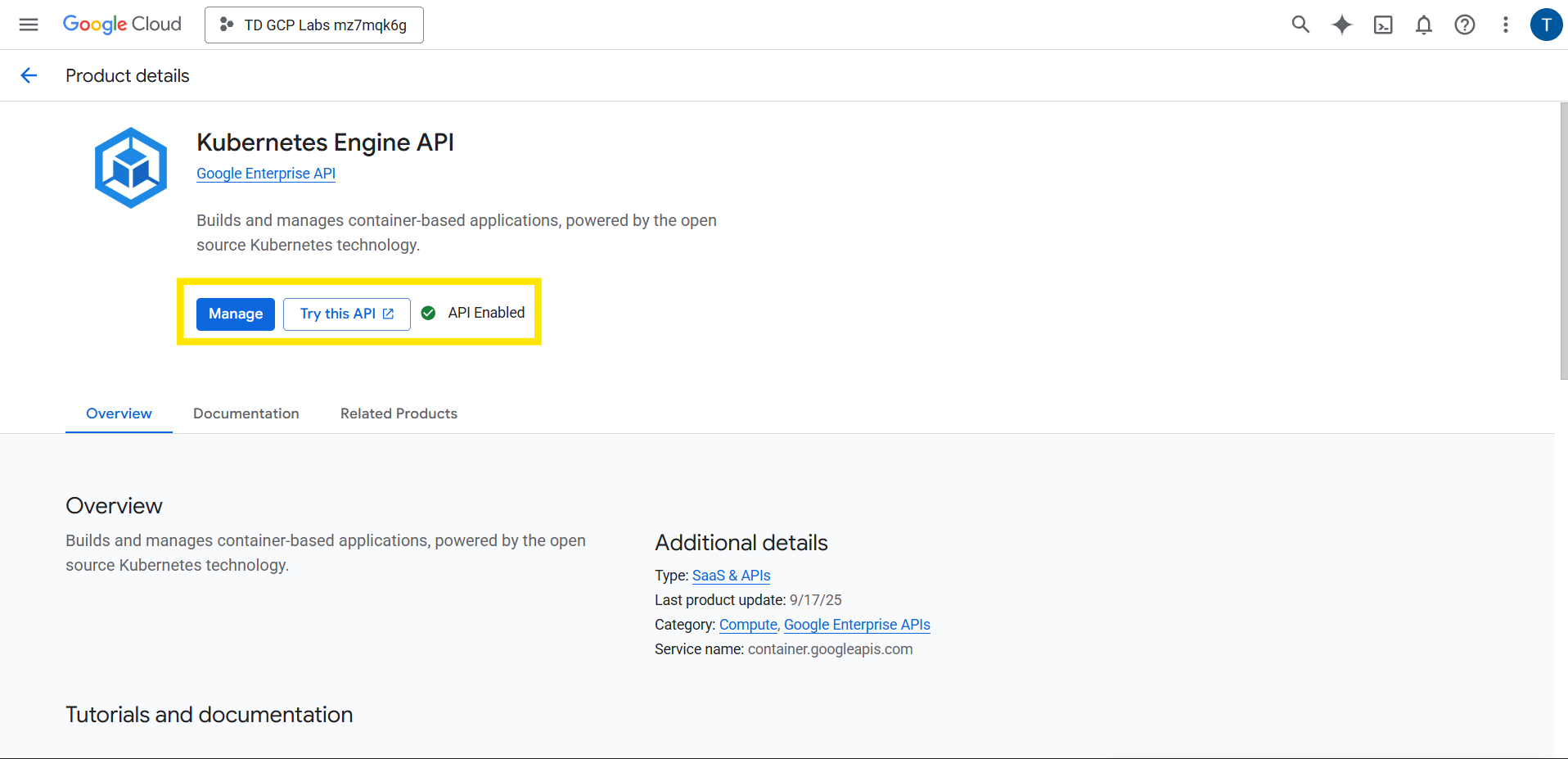

    4. Once enabled, the button will change to Manage, confirming the API is active.

      Navigating to Google Kubernetes Engine

      1. In the Google Cloud console, use the unified search bar again.

      2. Type “Kubernetes” and select Kubernetes Engine.

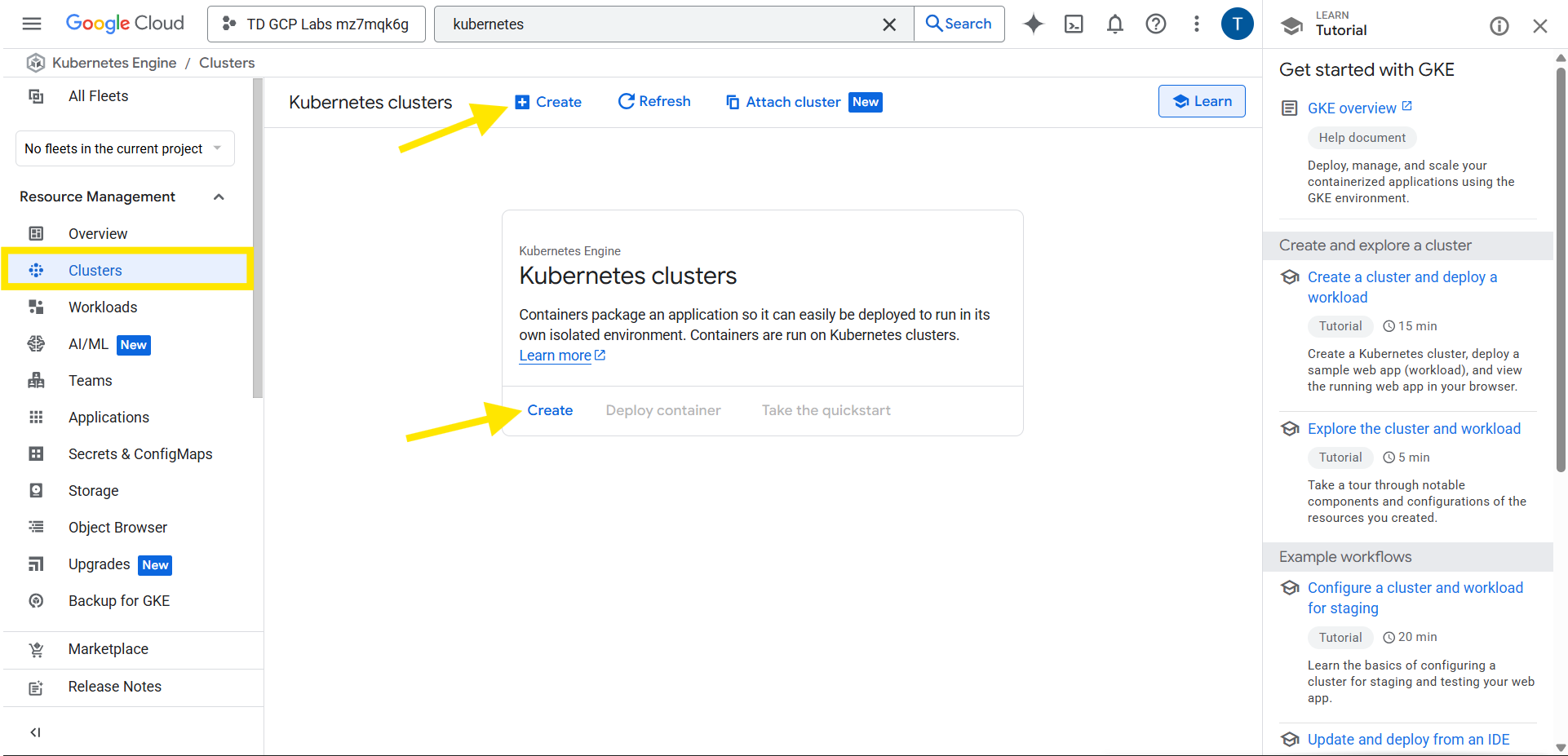

      3. The Kubernetes Engine page will appear. Navigate to Clusters then click Create either in the top menu bar or in the middle of the page

        Creating a GKE Cluster

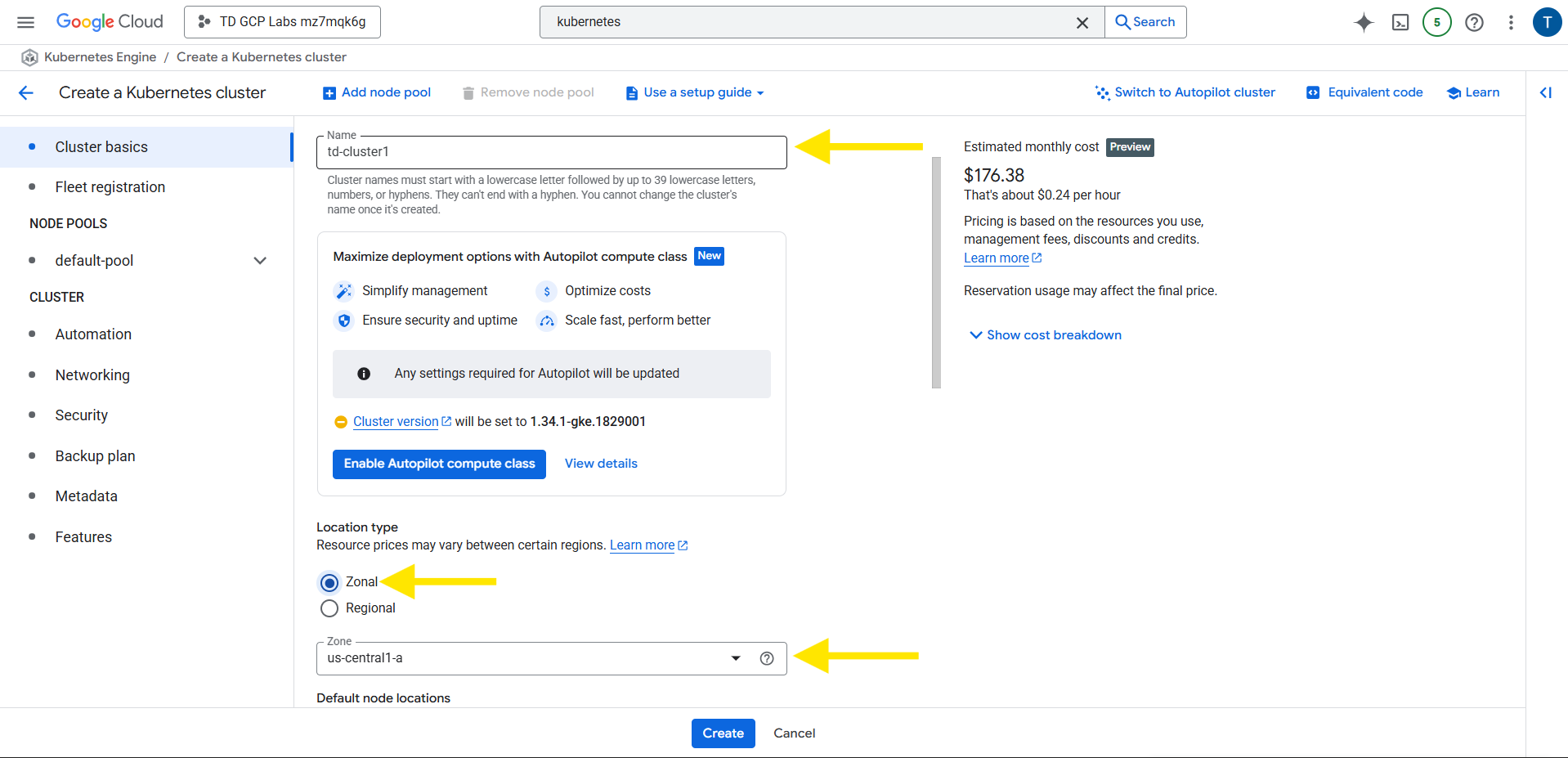

        On the cluster creation page, configure the following:

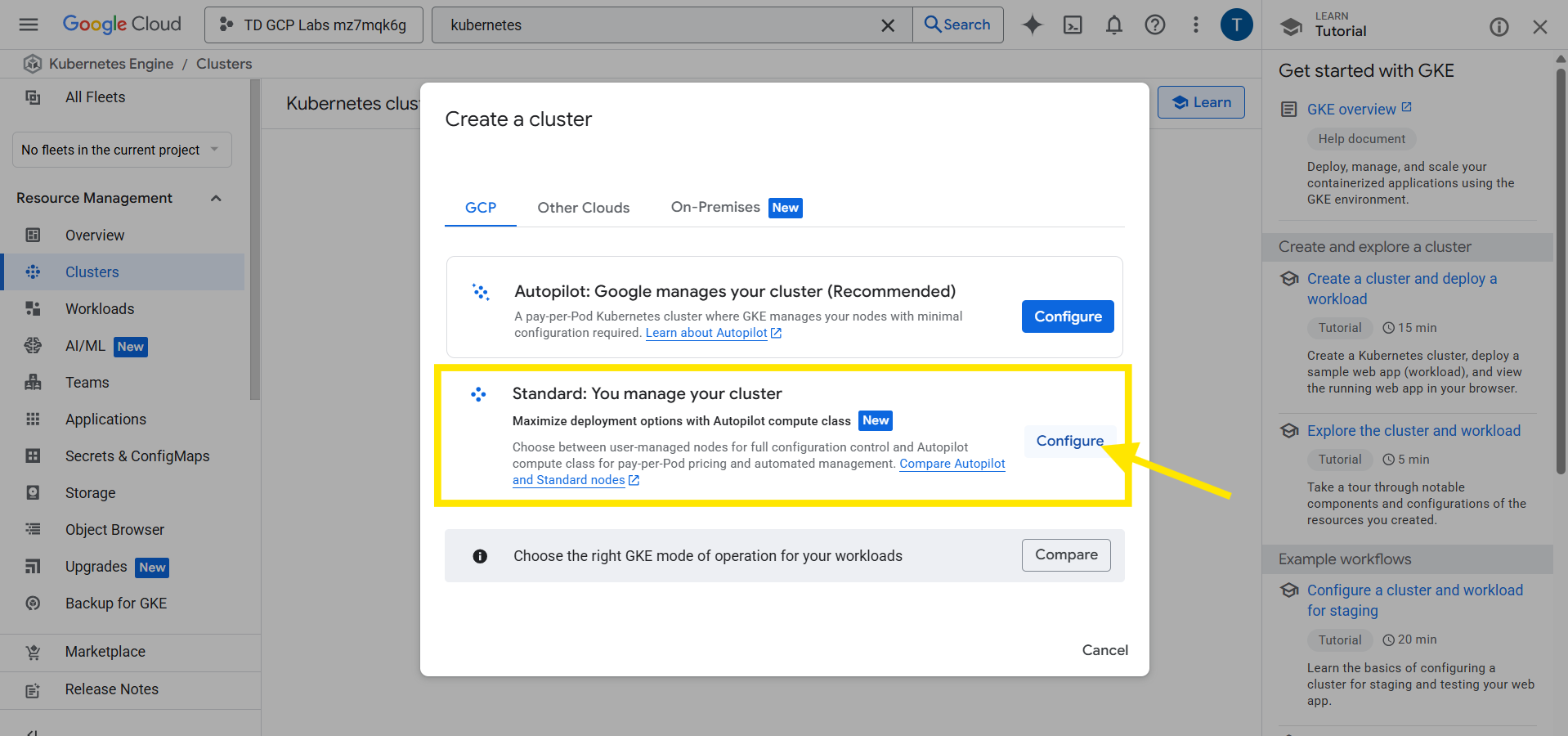

        • Cluster type: Standard
        • Cluster name: <your preferred cluster name>
        • Location type: Zonal
        • Zone: us-central1-a
        • On the Node pools, click the default-pool -> Nodes

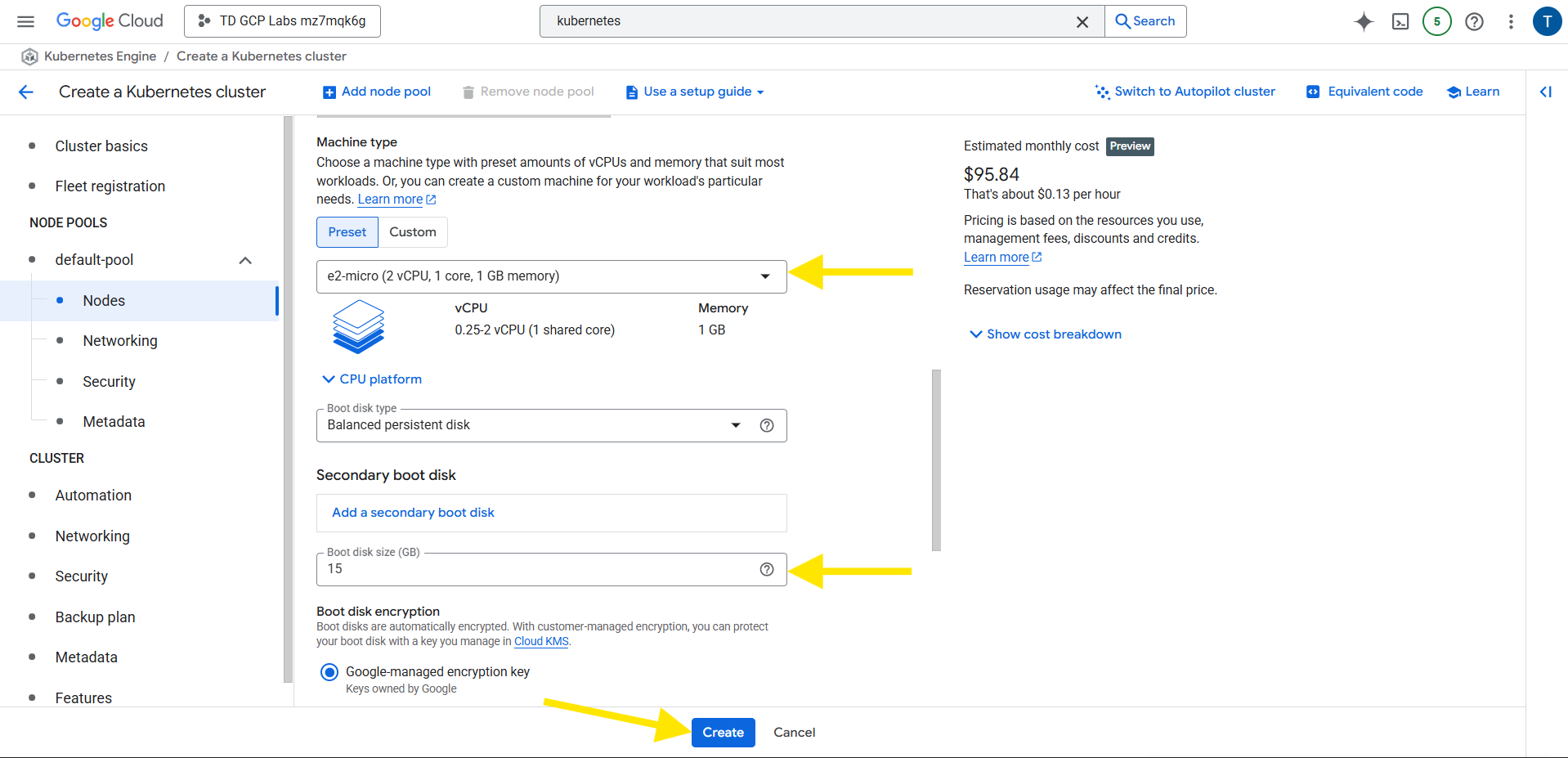

          • Machine configuration: General purpose
          • Machine type: e2-micro
          • Boot disk size: 15 GB
        • Leave the remaining settings as default unless otherwise specified. Once done, click Create.
        Verifying the GKE Cluster

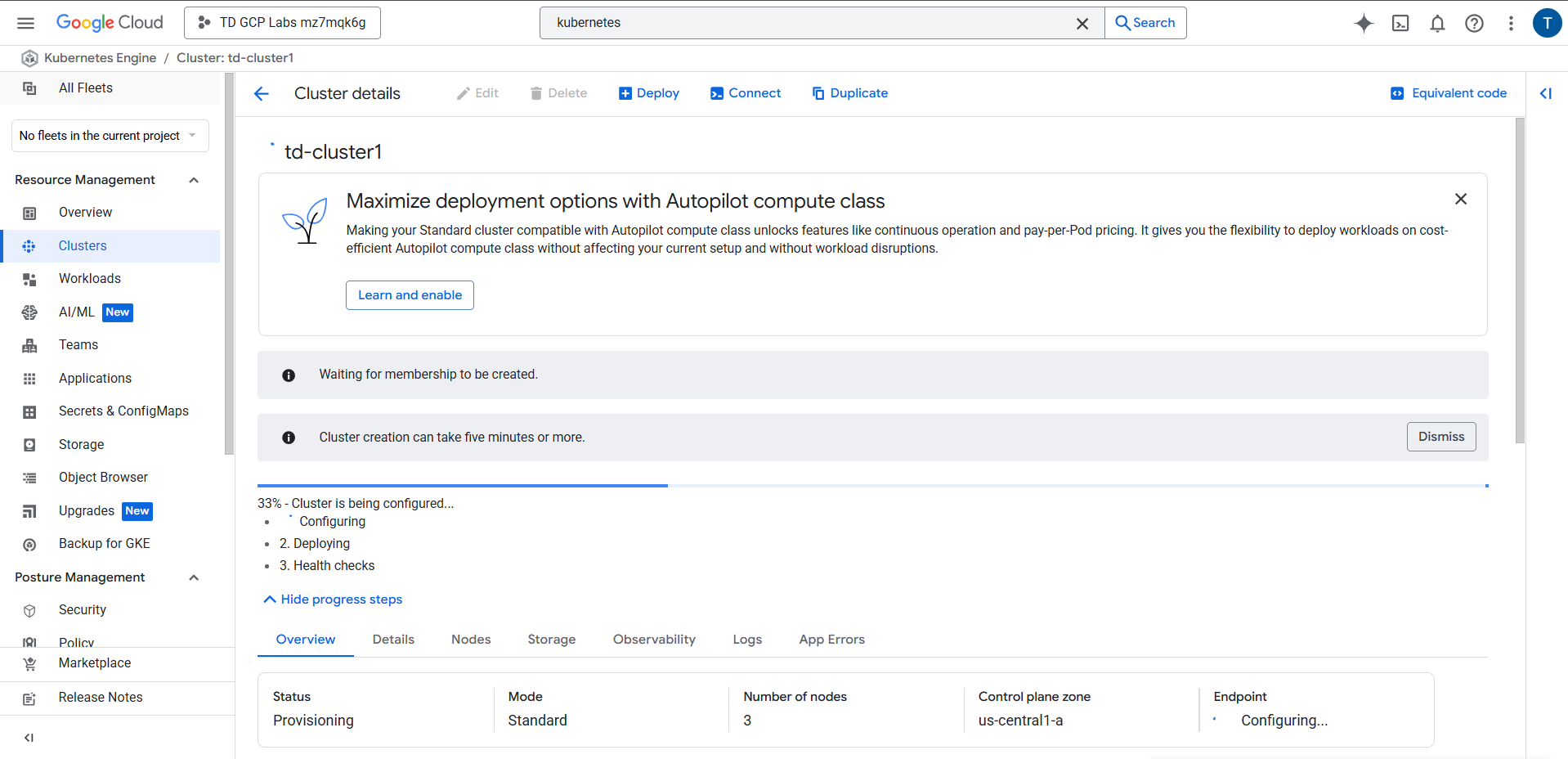

        • Wait for the cluster provisioning process to complete. This may take several minutes. You can monitor the progress on the Kubernetes Engine page.

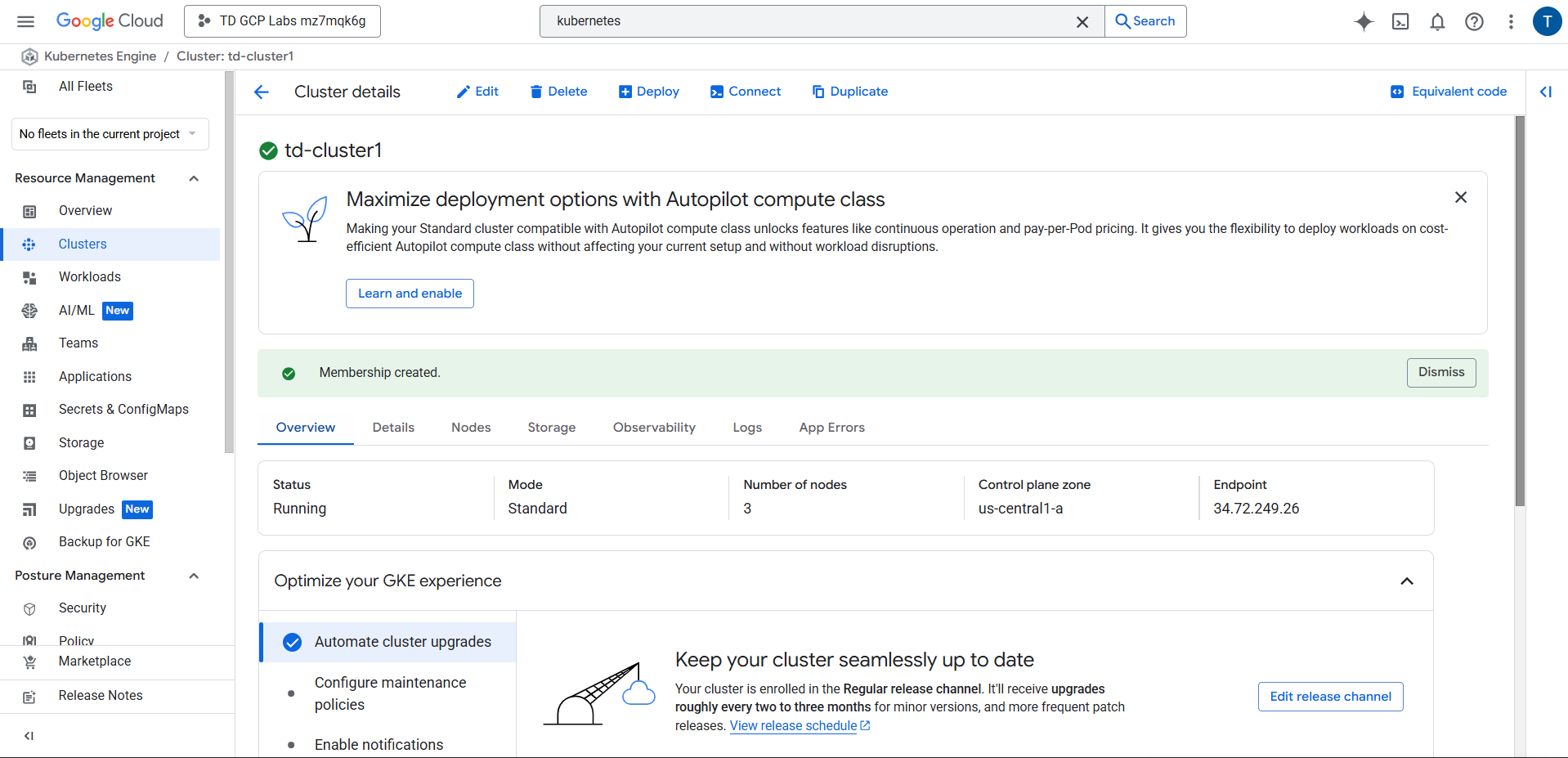

        • Once the cluster status shows Status: Running, the cluster has been successfully created.
        • You can review the cluster’s configuration to ensure it matches your selected settings, such as cluster name, zone, node pool size, and machine type.

        Congratulations! You’ve successfully enabled the Google Kubernetes Engine API and created a GKE cluster in Google Cloud. This guided lab provides hands-on experience with setting up a Kubernetes environment and understanding the prerequisites for cluster creation. In future guided labs, you’ll learn how to connect to your cluster using kubectl, deploy containerized applications, configure node pools, and explore scaling and networking features in GKE.
