Guided Lab: Creating and Restoring Cloud SQL Backups

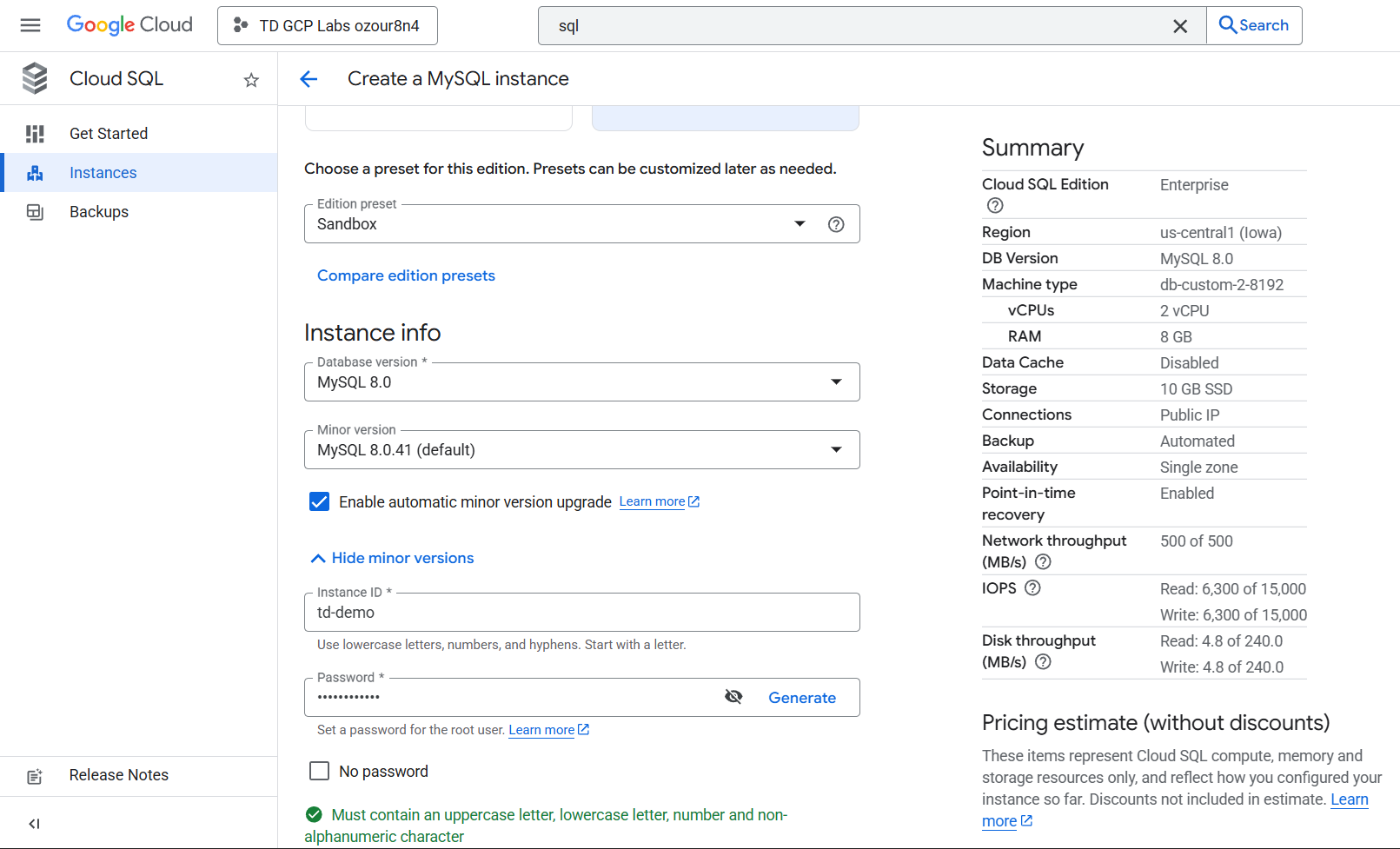

1. Go to Cloud SQL, then click Create Sandbox instance.

2. On the Create a MySQL instance page, set the Edition preset to Sandbox.

3. Enter your desired Instance ID.

4. Set a desired password for the root user.

5. Leave other configurations at their default values.

6. Click Create instance to start creating the instance.

1. Once the instance is created, go to the Users tab.

2. Click Add user account.

3. Enter the desired User name and Password.

3. Click Add. A confirmation message will appear in the bottom‑left corner

1. Navigate to the Databases tab.

2. Click Create database.

3. Enter a Database name (e.g., EmployeesDB).

4. Once done, click Create.

1. Open the Cloud SQL Studio tab from your instance page.

2. Select the database you created (e.g., EmployeesDB).

3. Enter the credentials for the user account you added earlier and click Authenticate.

4. Once authenticated, open the Untitled Query Editor.

5. Create a new table to store employee records by running:

CREATE TABLE Employees (
  ID INT PRIMARY KEY,
  Name VARCHAR(50),
  Age INT,
  Salary DECIMAL(10, 2)
);

6. Insert sample data into the table:

INSERT INTO Employees (ID, Name, Age, Salary)
VALUES (1, 'Jose Rizal', 25, 50000.00);

INSERT INTO Employees (ID, Name, Age, Salary)
VALUES (2, 'Andres Bonifacio', 25, 50000.00);

INSERT INTO Employees (ID, Name, Age, Salary)
VALUES (3, 'Emilio Aguinaldo', 25, 50000.00);

7. Verify the data by running:

SELECT * FROM Employees;

This will display the three employee records you inserted.

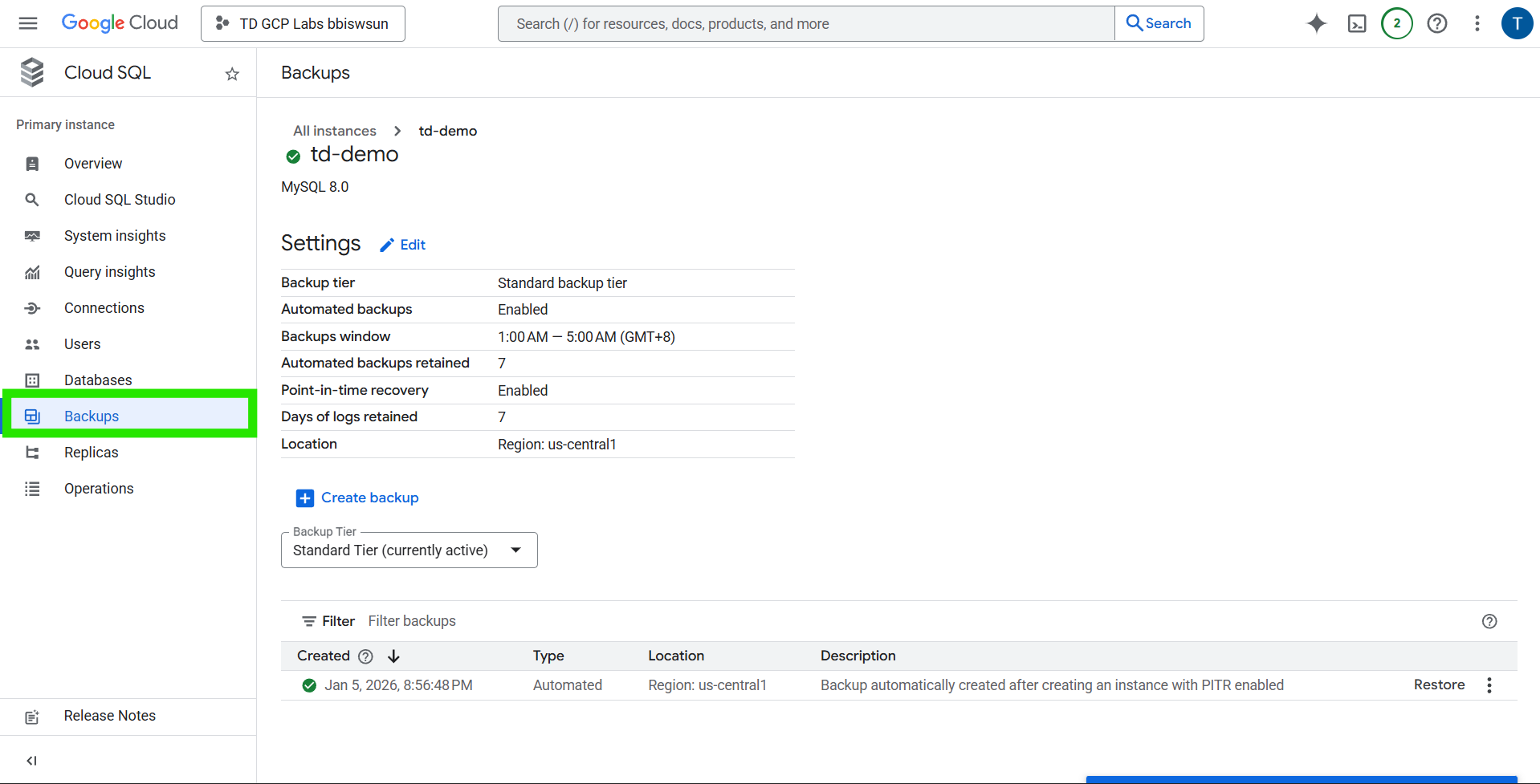

1. In the left panel, click Backups.

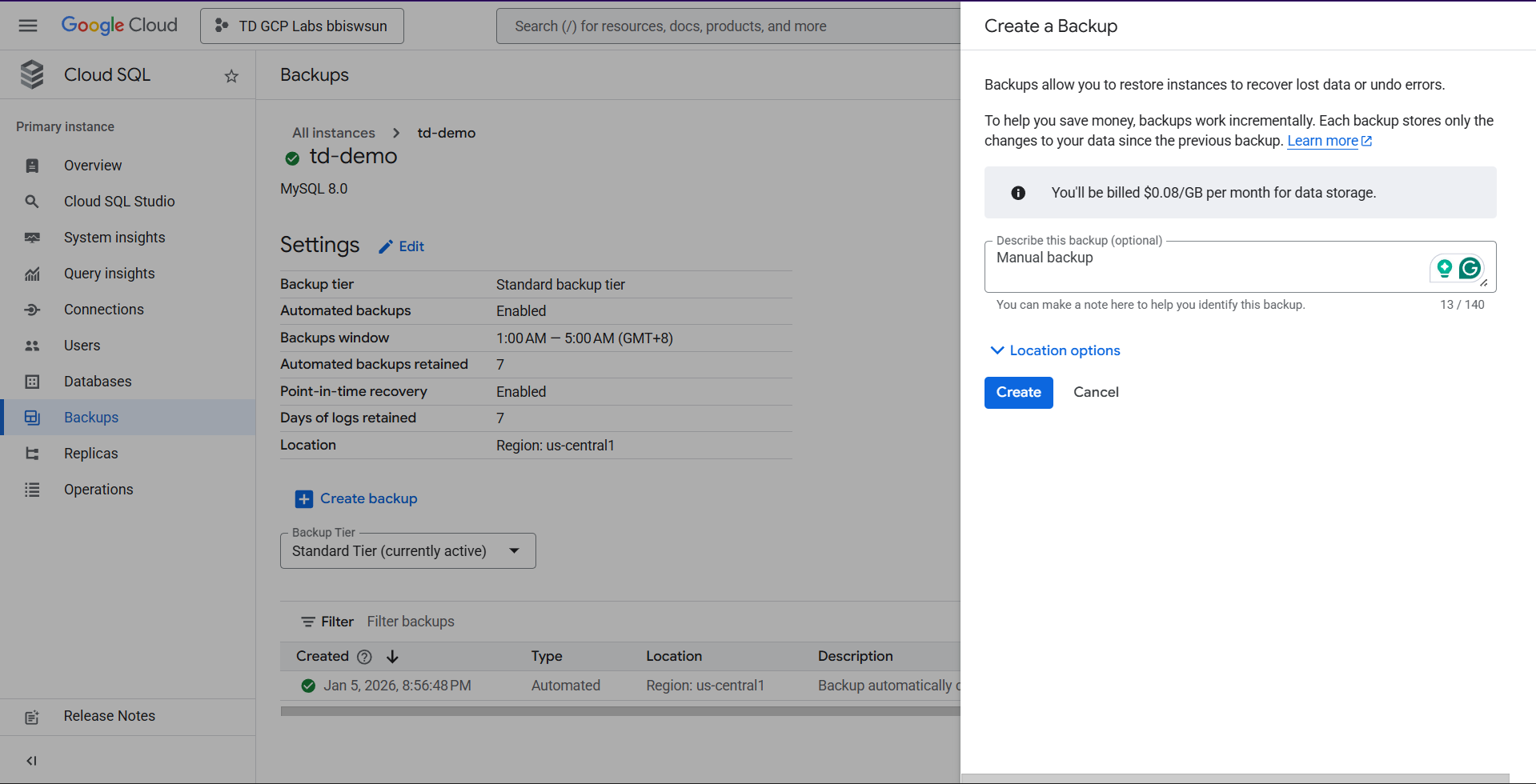

2. Click Create Backup.

3. (Optional) Enter a name for the backup. If left blank, Google Cloud will generate one automatically. For this demo, name it “Manual backup.”

4. Click Create.

5. Wait for the backup to complete. You will see it listed under the Backups tab.

1. In the Backups tab, select the backup you want to restore.

2. Click Restore.

3. Choose whether to restore to the same instance or create a new instance.

• Restoring to the same instance will overwrite existing data.
• Restoring to the existing instance will overwrite an existing compatible instance from your project.
• Restoring to a new instance allows you to test or recover without affecting production.

For this demo, choose Restore to a new instance.

4. Click Restore and wait for the process to complete.

1. Open Cloud SQL Studio in the Google Cloud Console and connect to your restored Cloud SQL instance. Once connected, run a simple query such as:

SELECT * FROM Employees;

to confirm that your data has been restored.

Congratulations! You have successfully created a Cloud SQL instance, inserted sample data, generated a manual backup, restored that backup to a new instance, and verified that your data was preserved. This workflow demonstrates how Cloud SQL backups protect against accidental data loss and enable recovery in both test and production environments.
