Guided Lab: Querying Data with Amazon Athena and AWS Glue Crawler Integration

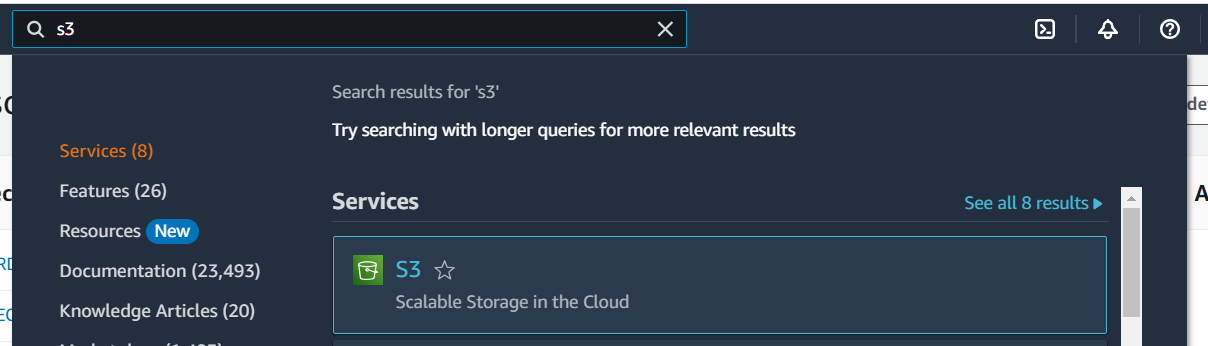

1. Log into AWS Management Console and navigate to the S3 service.

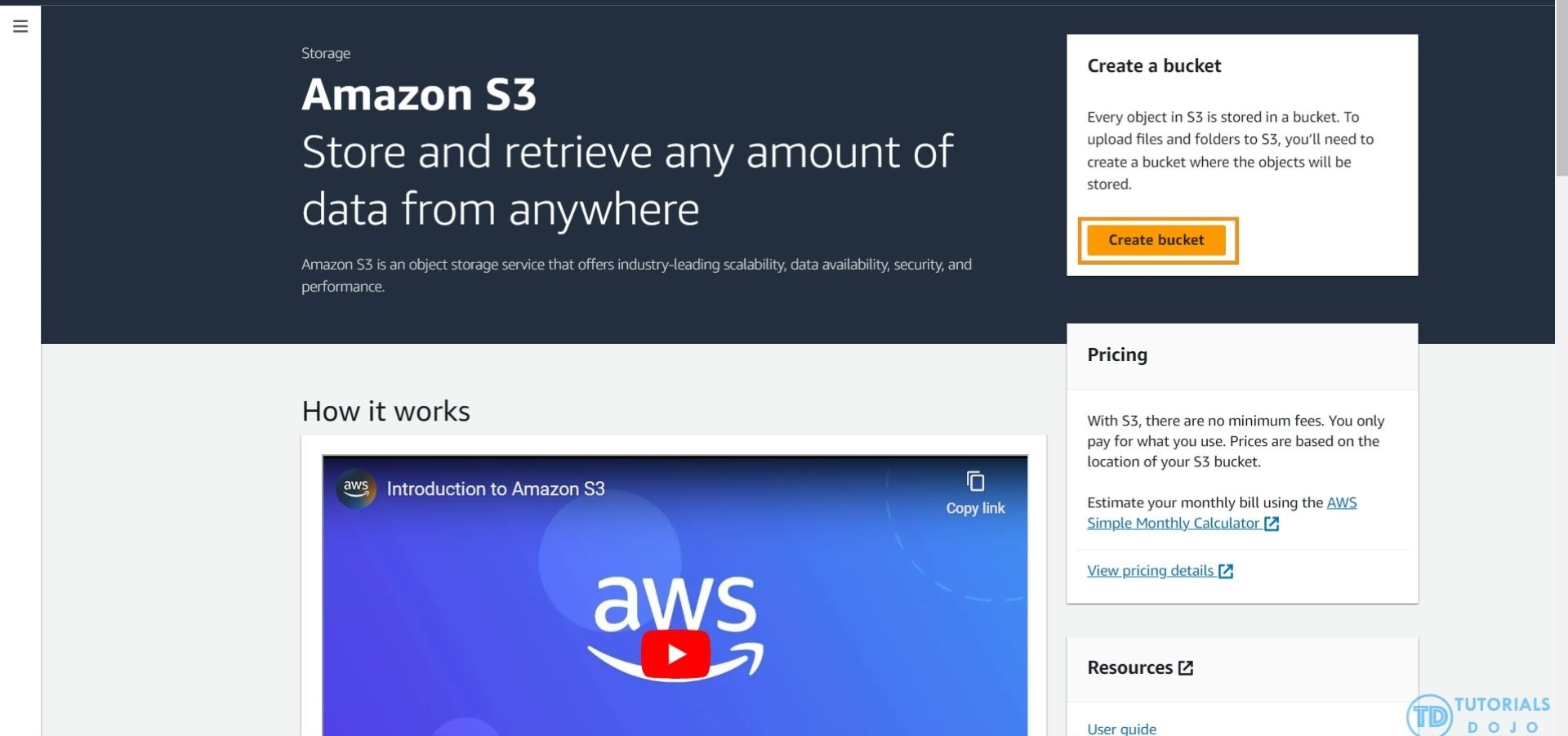

2. Create a new bucket

• Provide a unique name
• Leave everything as default settings.
• Click Create Bucket

3. Download this file for this lab

https://media.tutorialsdojo.com/public/Philippine_Tourist_Spots.csv

4. Create folders and Upload data files

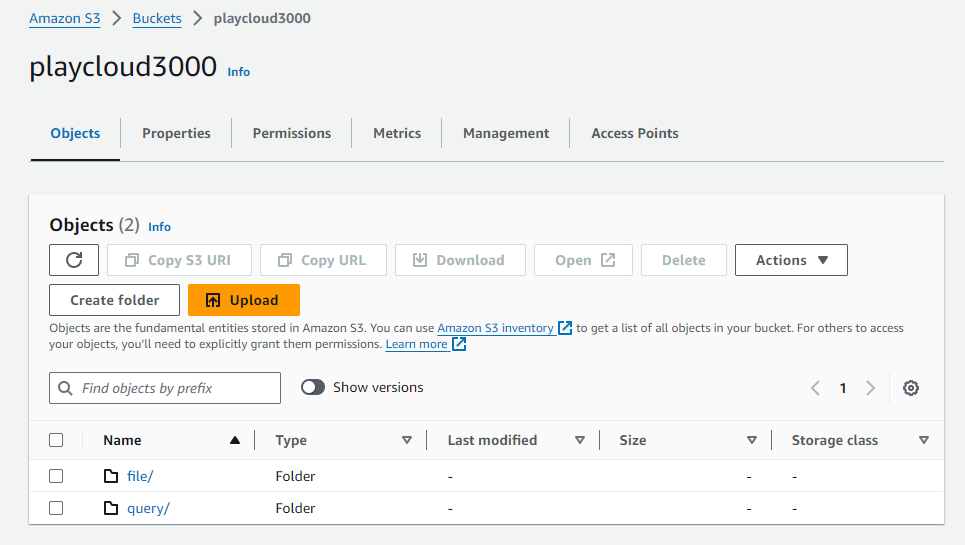

• Create two folders and name them:
  • file
  • query

• Upload the file:
  • Open file/ folder of your bucket.
  • Click on Upload and upload the file you downloaded previously.

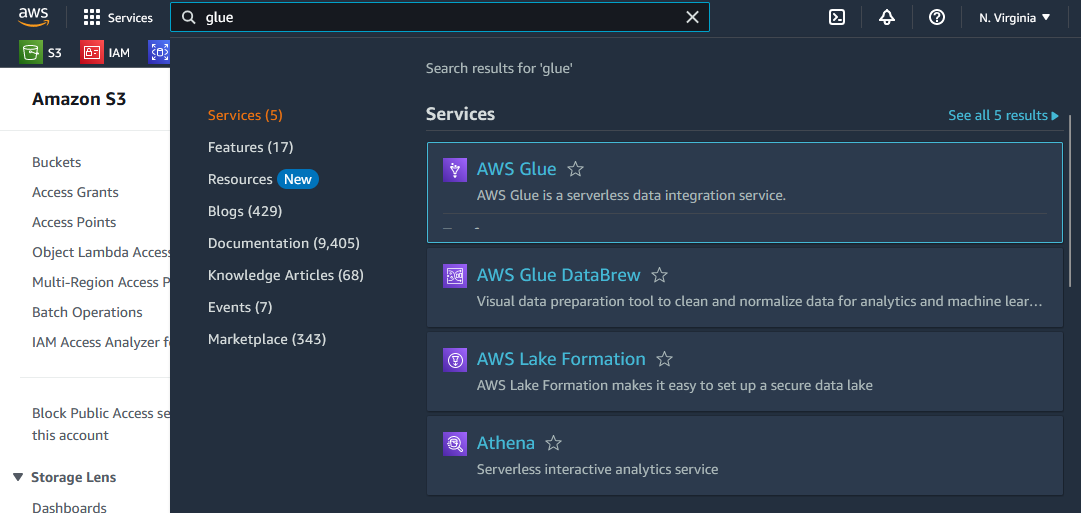

1. Navigate to the AWS Glue service in the AWS Management Console.

2. Creating a database

• To create a database, you need to

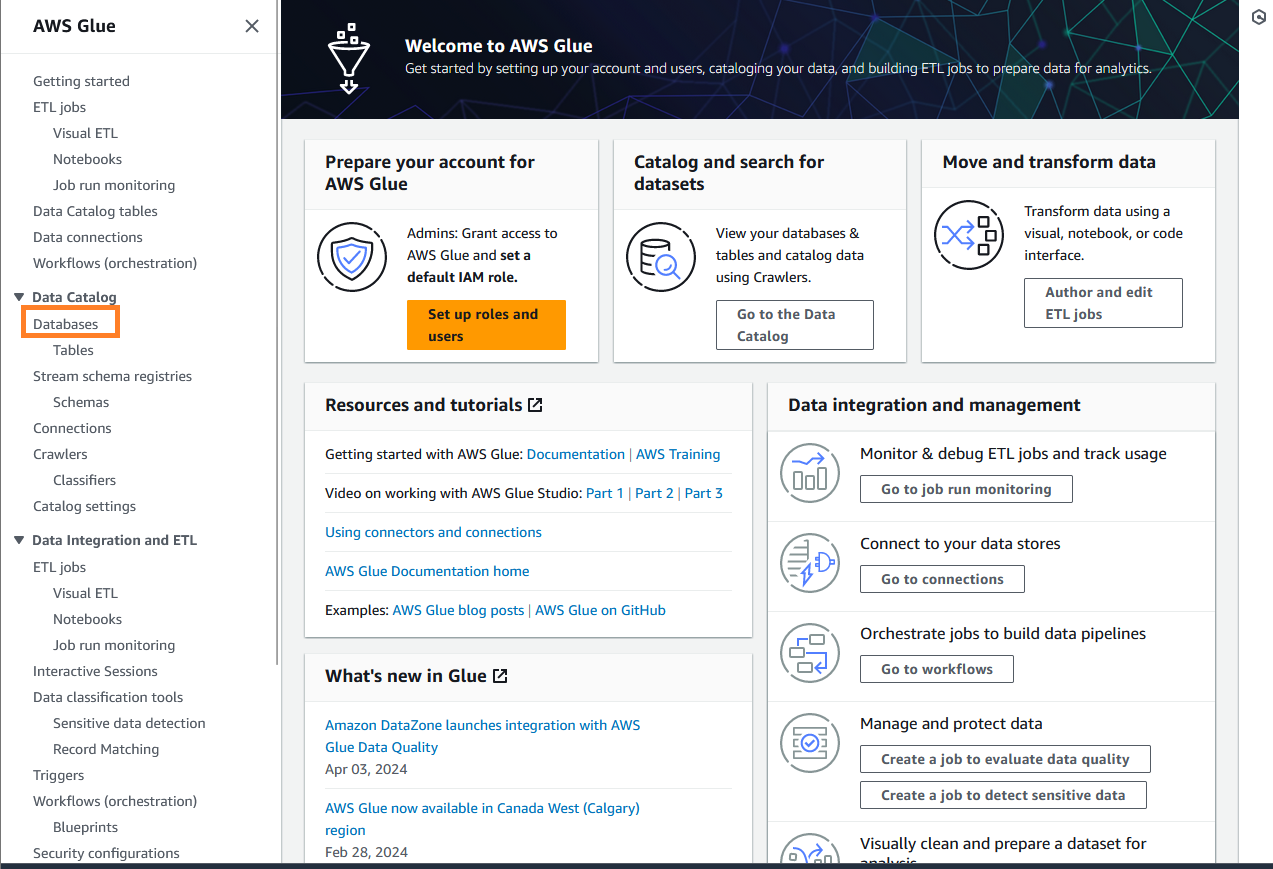

  • Click on Databases in the left corner of the window.

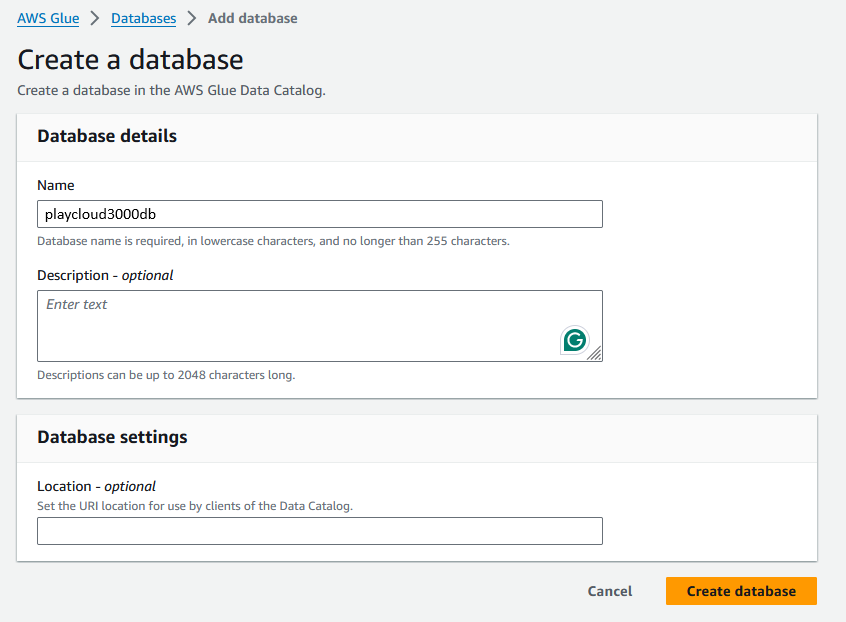

• Fill the Name with a unique database name and add a Description if desired.
• Click on Create database

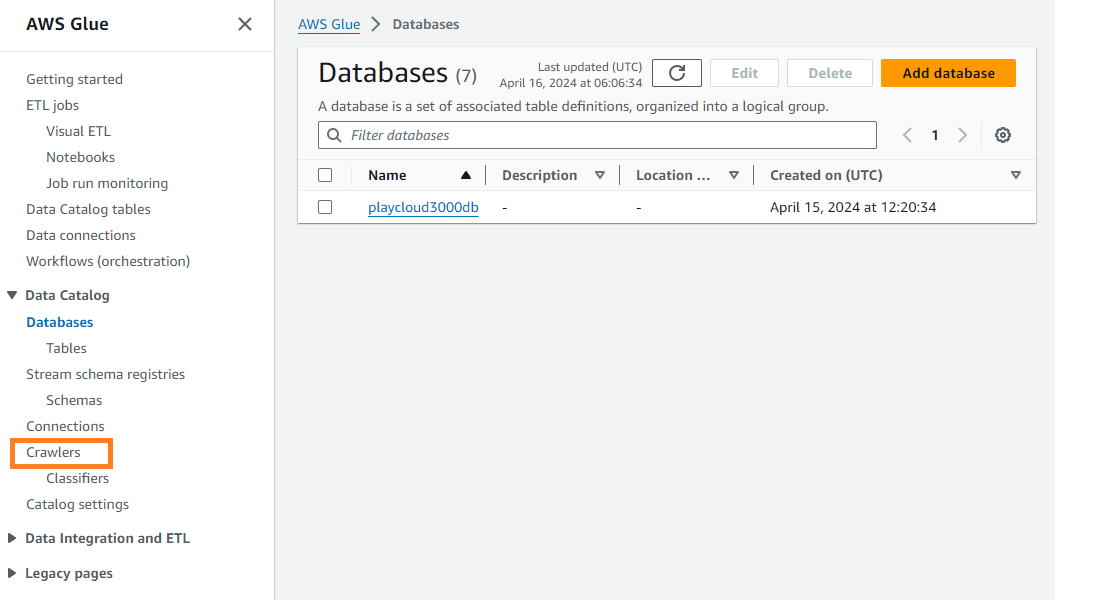

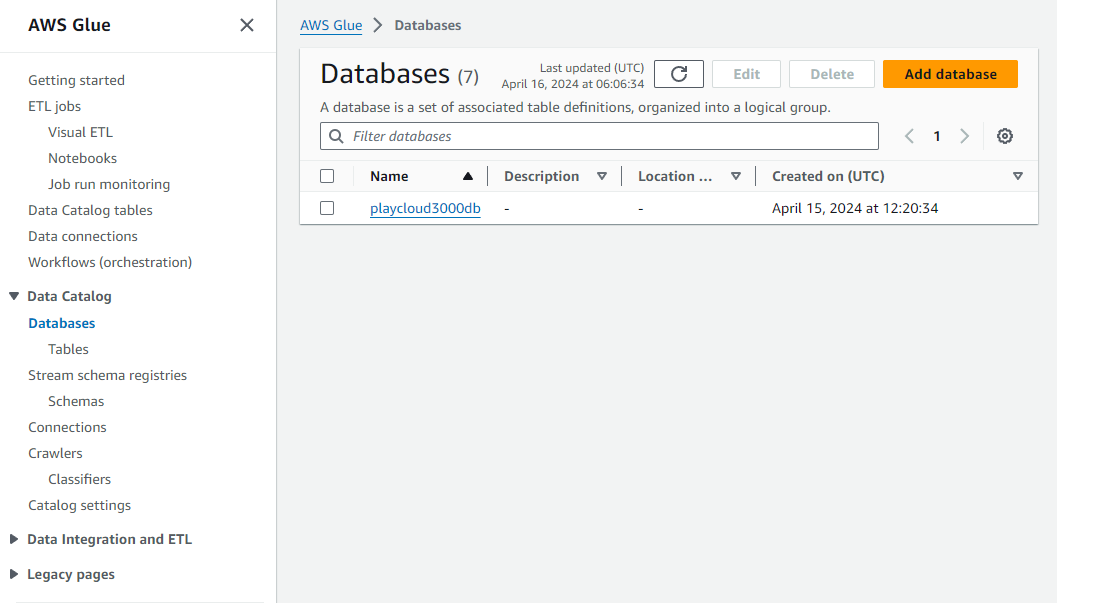

• You should see your newly created database afterward.

1. Adding tables by Glue Crawler.

• To create a Glue Crawler
  • Click on Crawlers

• Click on Create crawler

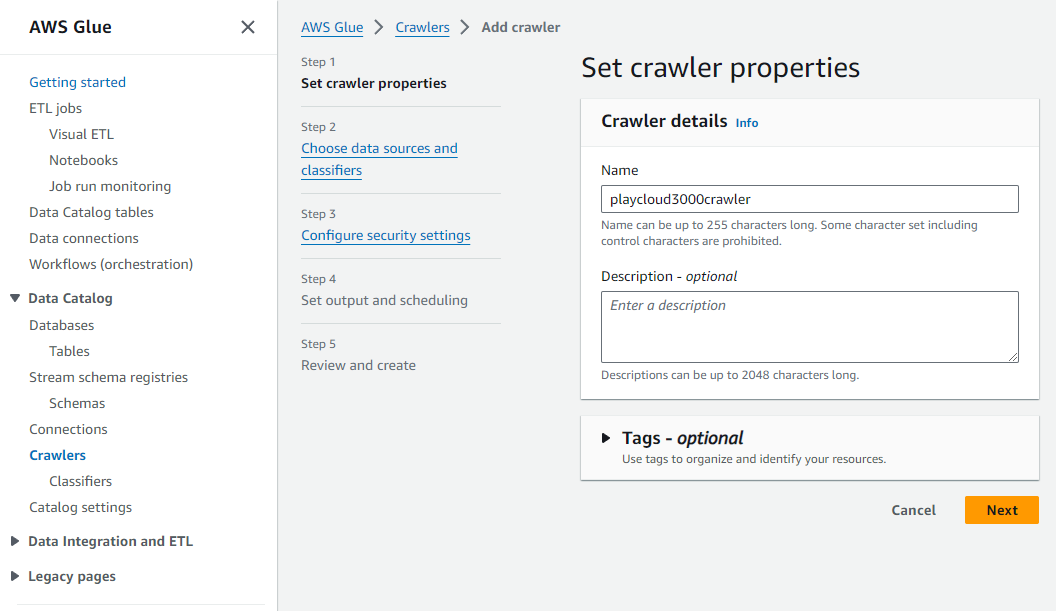

• Fill the Name for your crawler add description if desired.

• Click on Next

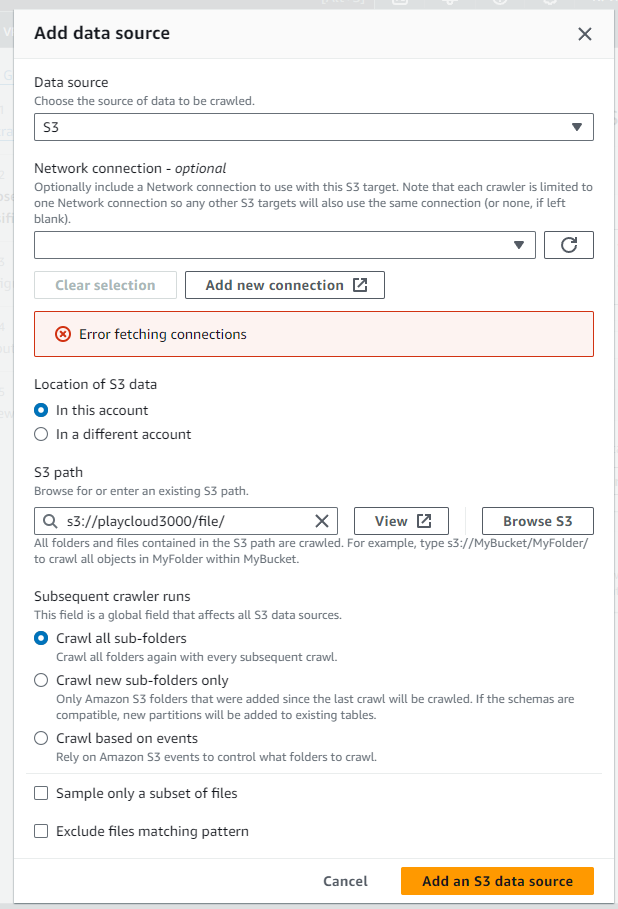

• Click on Add a data source under the Data source.
  • Add these details:
    • Data source: S3
    • S3 path:

      s3://<name-of-your-s3-bucket>/file/

      Remember to change the placeholder <name-of-your-s3-bucket> with the name of your S3 bucket

• Click in Add an S3 data source
• Click on Next
• Under IAM role, Select PlayCLoud-Sandbox

• Click on Next

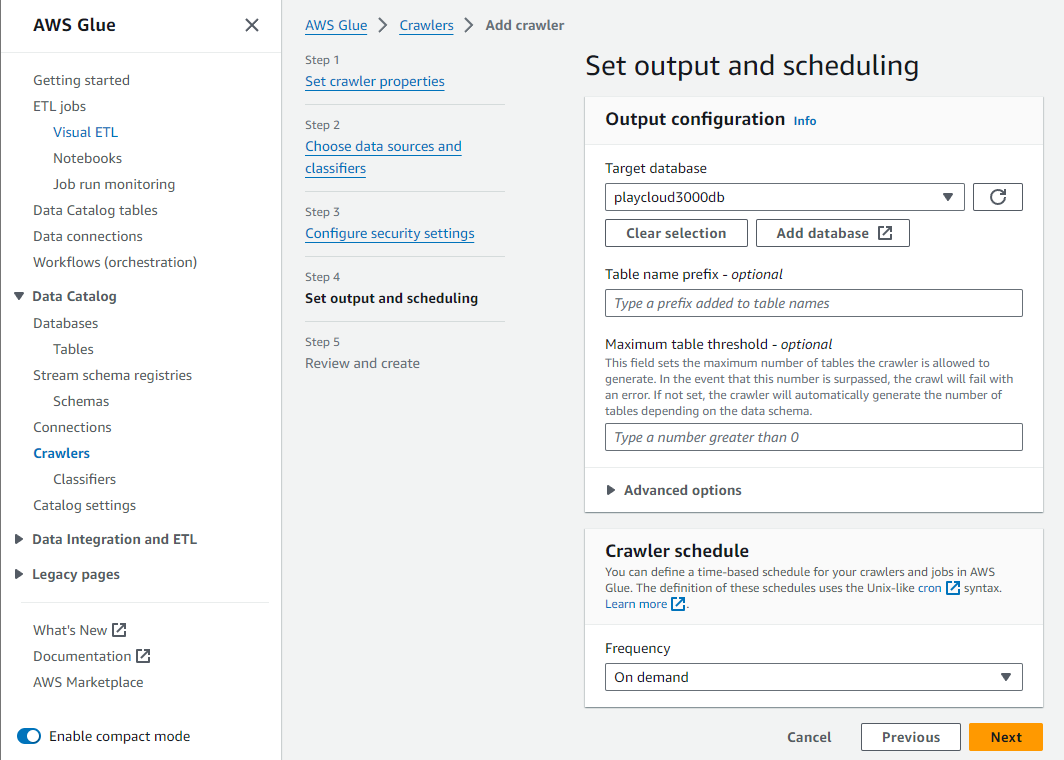

• Under Target Database, Select the database you created.

• Click on Next
• Review all the details under the Review and create
• Click on Create crawler

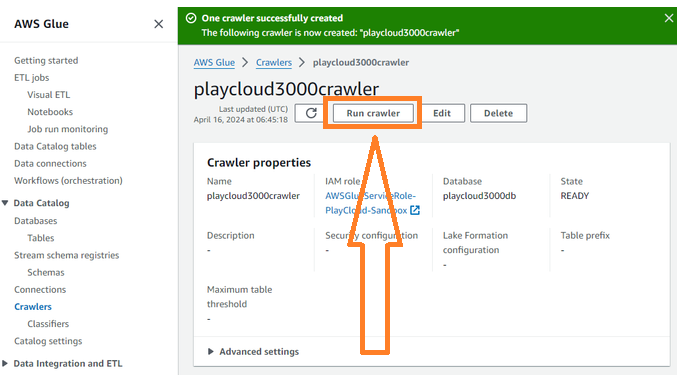

• You should be seeing a successful window and redirected to a window similar to the image below

2. Run the Crawler

• After creating the crawler, Click on Run Crawler

  NOTE: It will take a few minutes for the crawler to crawl the AWS S3 Bucket

• When the crawler finishes crawling, you should be able to see similar image below

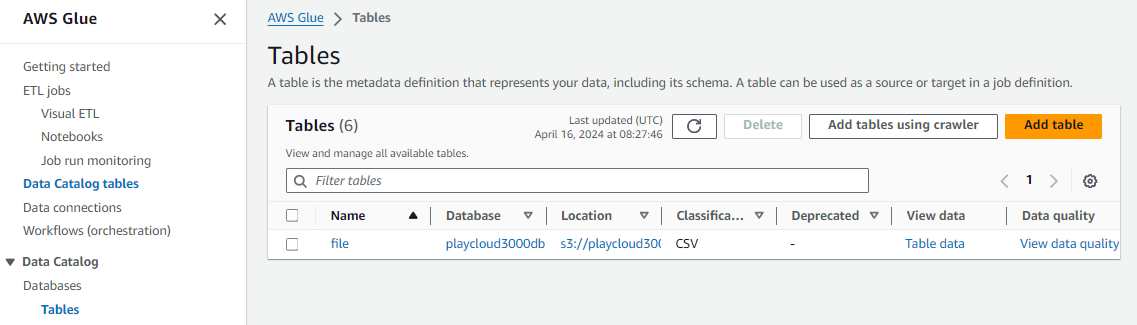

• In the Data Catalog Tables, you can see that a new table should be added.

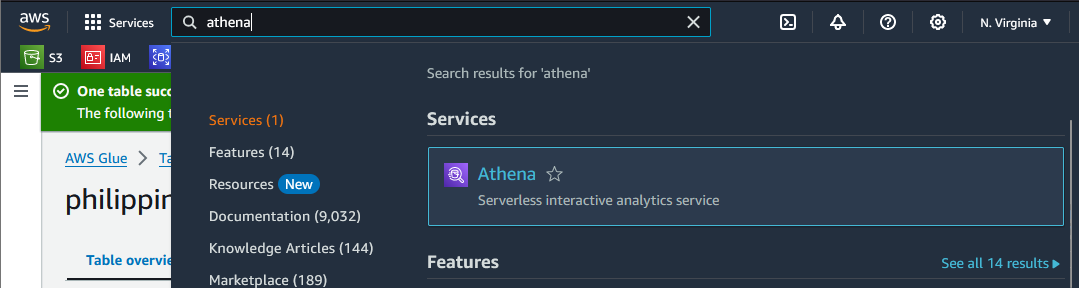

1. Navigate to Amazon Athena in the AWS Management Console.

2. Set up a query location in Athena settings to specify an S3 bucket for storing query results.

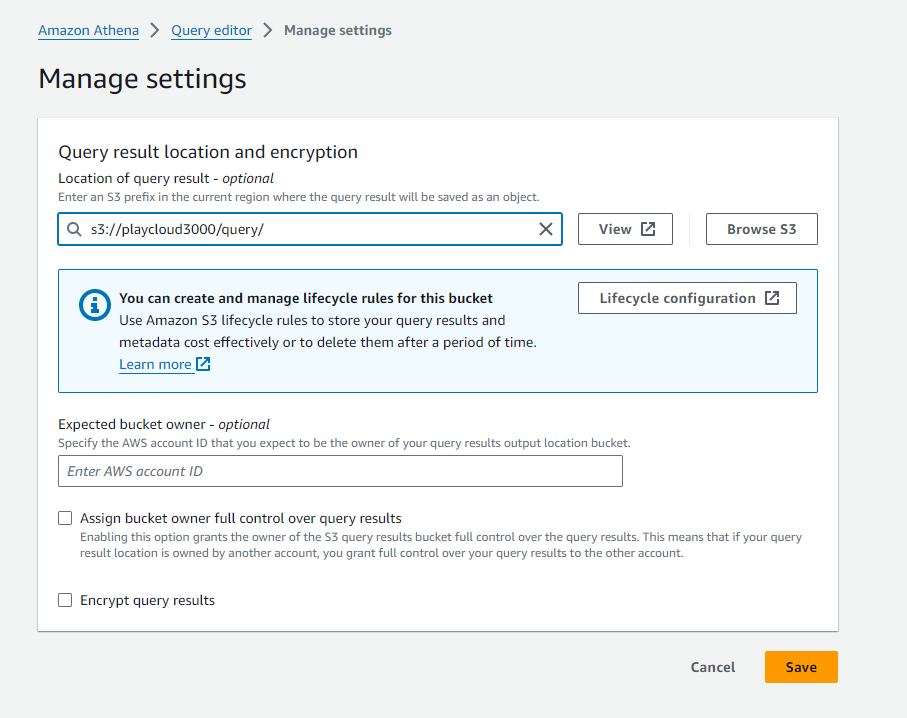

• Click on Edit settings

• In the Query result location and encryption
  • Add

    s3://<name-of-your-s3-bucket>/query/

    Remember to change the placeholder <name-of-your-s3-bucket> with the name of your S3 bucket

• click on Save

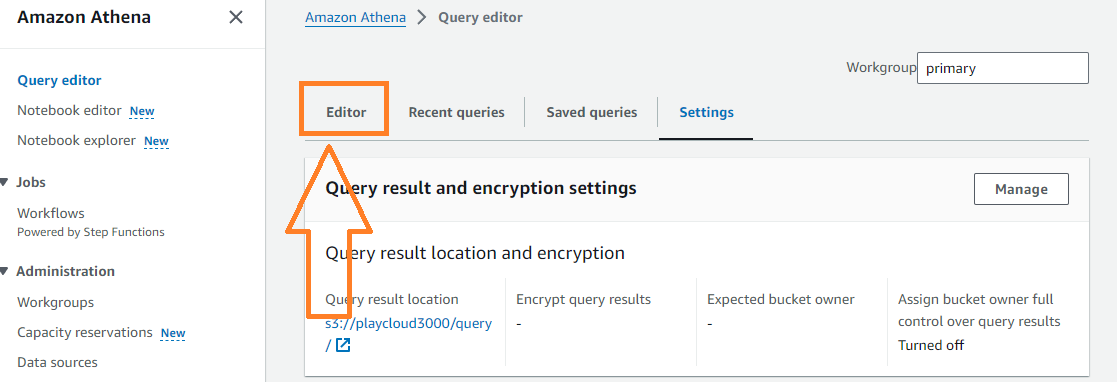

• Navigate back to the Amazon Athena Editor tab

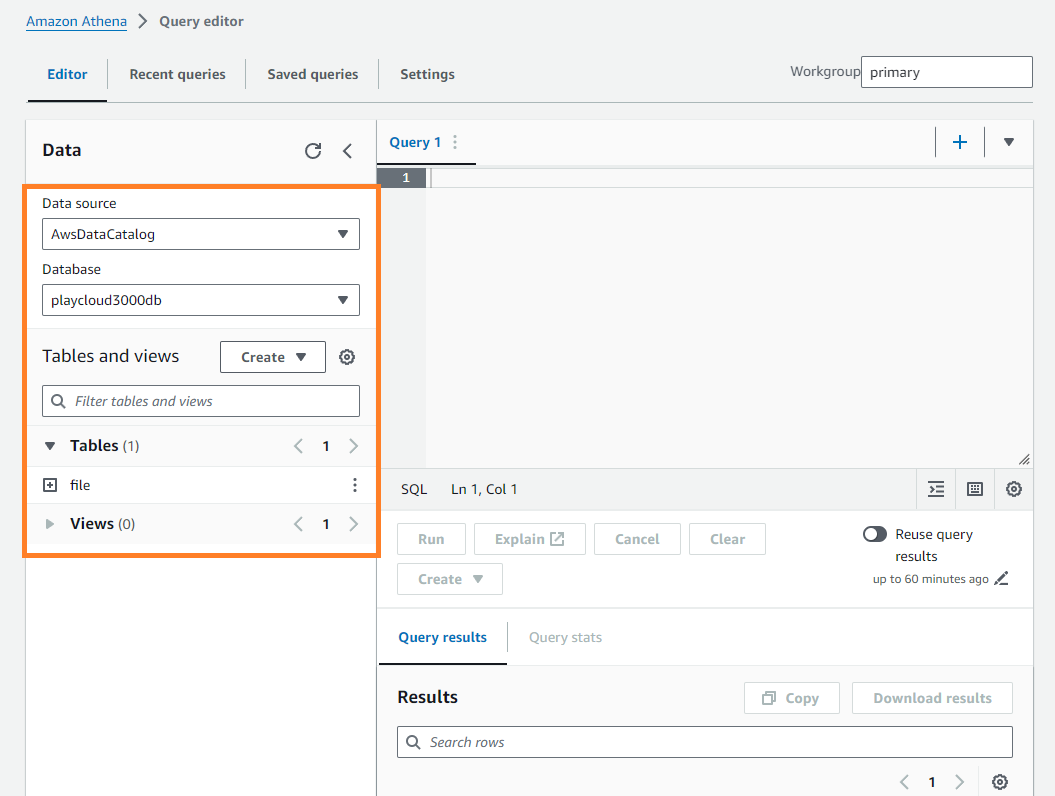

3. Select the database created in the AWS Glue Data Catalog.

• Follow the configuration below
  • Data source: AwsDataCatalog
  • Database: (select the name of the database you created)
  • The Tables should be automatically with the tables you created a while ago.

4. Write and run SQL queries to analyze your data. You can use the standard SQL syntax.

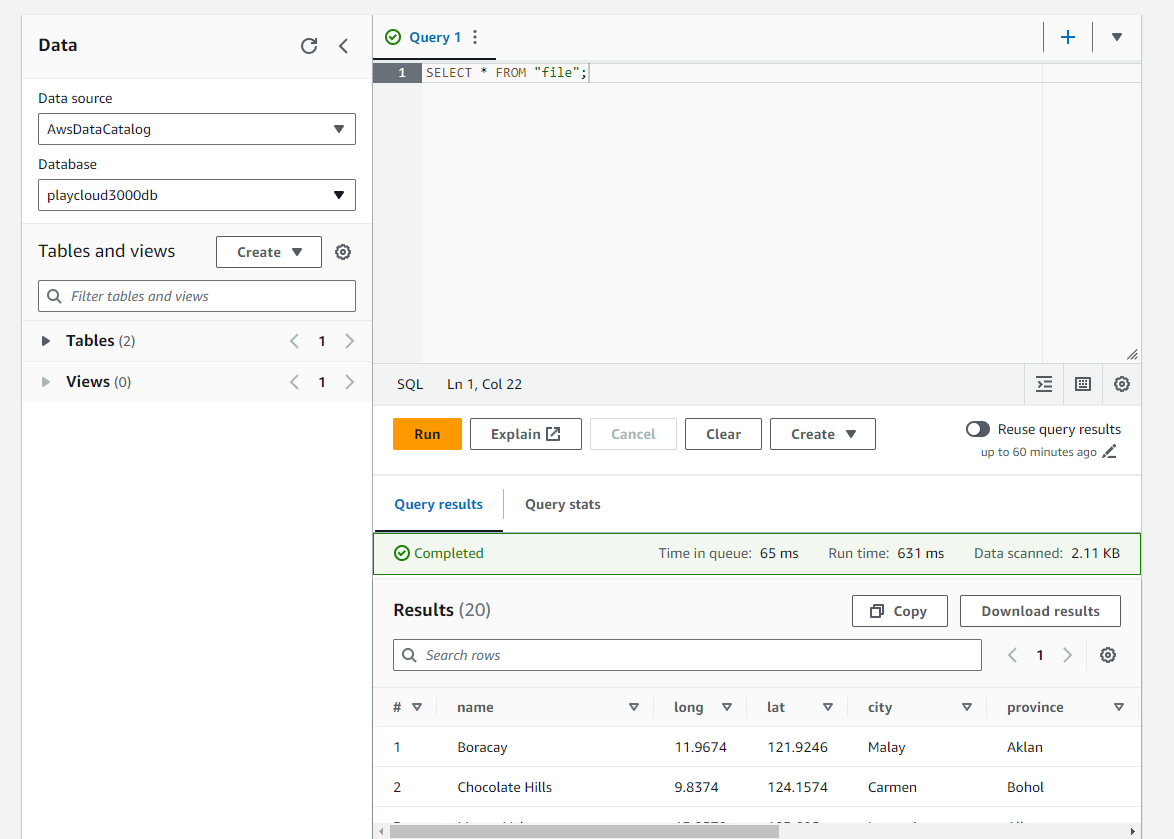

• To view all records:
  • Copy & Paste. Then, Run the following SQL query and check the results afterward.

SELECT * FROM "file";

• You can click on Clear to clear the current cell contents and click on the plus button ( + ) to add a new cell besides the current cell

• Filtering Records with a WHERE Clause
  • Copy & Paste. Then, Run the following SQL query and check the results afterward.

SELECT * FROM "file"
WHERE province = 'Bohol';

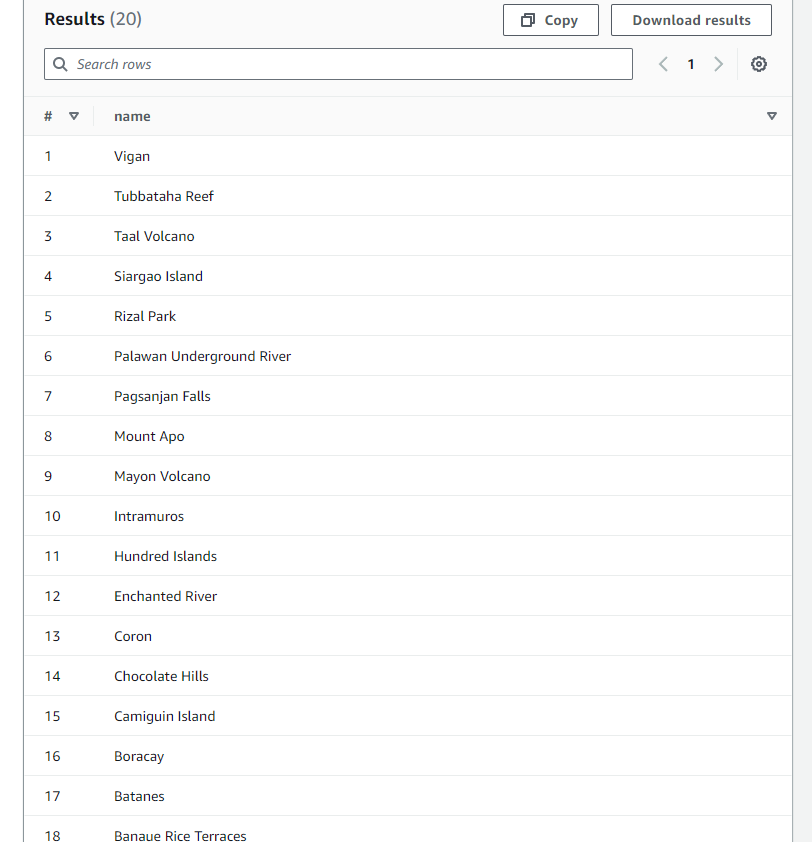

• Sorting Results
  • Copy & Paste. Then, Run the following SQL query and check the results afterward.

SELECT name
FROM "file"
ORDER BY name DESC;

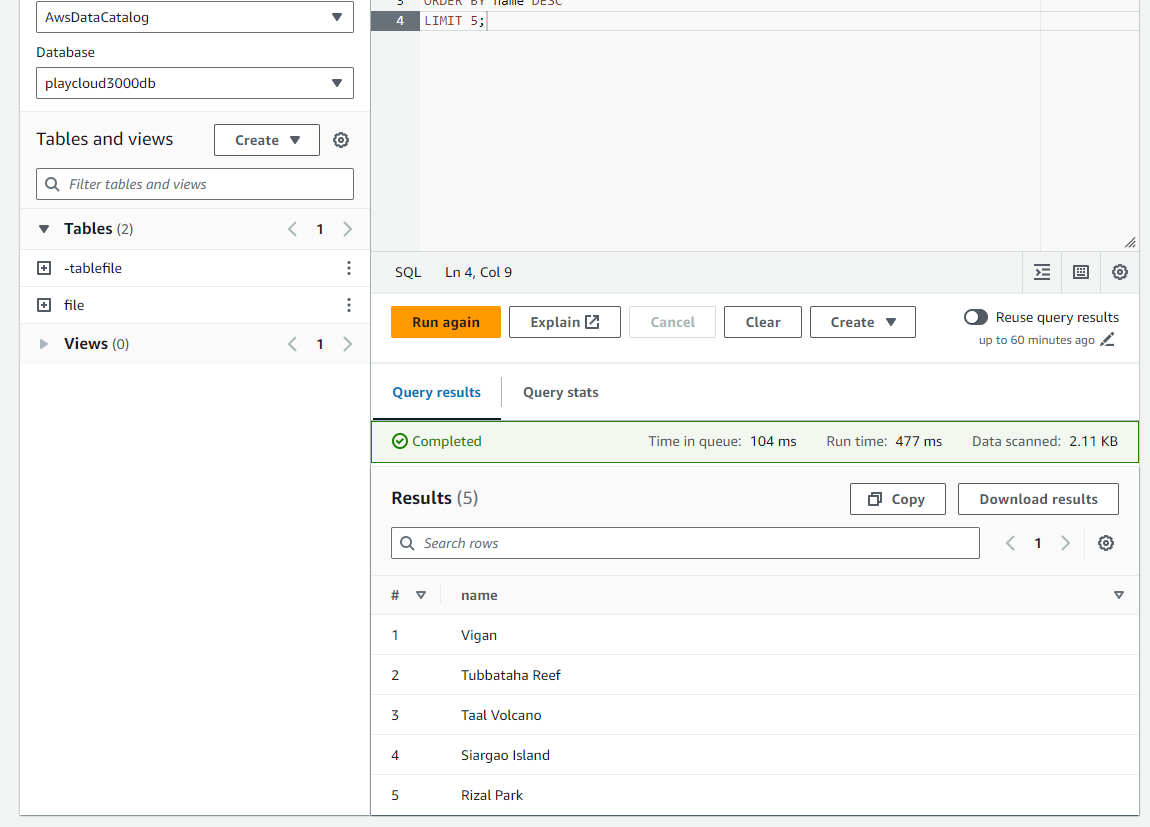

• Limiting Results
  • Copy & Paste. Then, Run the following SQL query and check the results afterward.

SELECT name
FROM "file"
ORDER BY name
DESC LIMIT 5;

That’s it! Congratulations!

You just learned how to use AWS Glue to create a data catalog (database and tables) for organizing data from Amazon S3 and query data directly from S3 using Amazon Athena. This lab serves as a foundational step into the world of cloud-based data analytics, empowering you to explore more complex data analytics scenarios.

One last thing! It is a good practice to clean up the resources created during this lab. Not only will it make you a better professional, but you will also become a more organized person. Happy learning!
